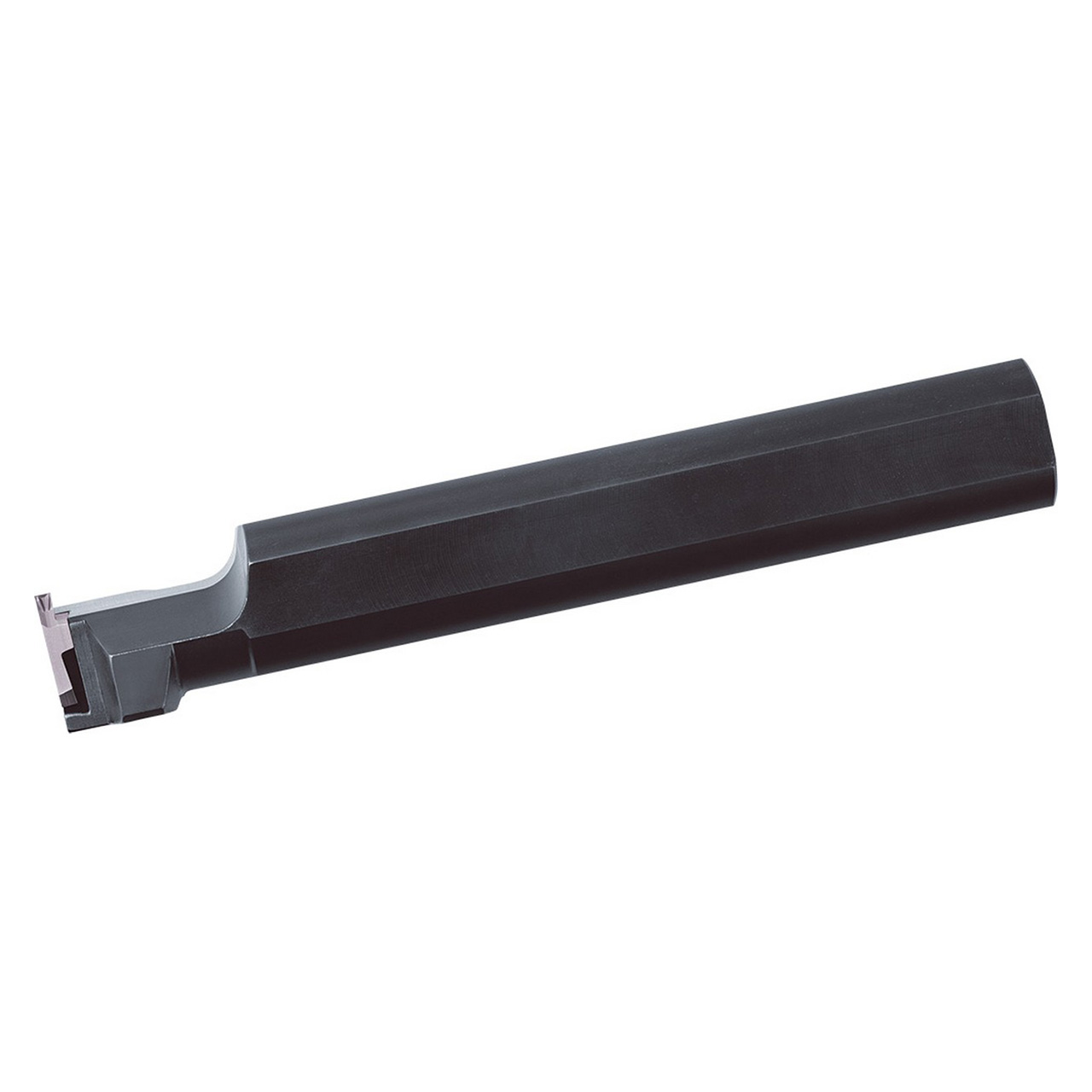

Features:
- High precision grooving with insert width tolerance of +/- 0.02mm
- Stable chip control and low cutting force design
- Sleeve style design
- Compatible with Right-Hand GBF32R inserts
Product Specifications
| EDP Number | THC14633 |
| Connection Diameter (Decimal Inch) | 0.7500" |
| Connection Diameter (mm) | 19.05mm |
| Shank Height (Decimal Inch) | 0.6693" |
| Shank Height (mm) | 17.00mm |
| Usable Length (Decimal Inch) | 0.7874" |
| Usable Length (mm) | 20.00mm |
| Application | Shallow Grooving | Small Parts Machining |
| Grooving Type | External Grooving |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Left-Hand
Overall Length (Decimal Inch):
0.7874"
Overall Length (mm):
20.00mm
Toolholder Style:
SÂ…KGBF
Shank Height (Decimal Inch):
0.6693"
Shank Height (mm):
17.00mm
Shank Width/Diameter (Decimal Inch):
0.7500"
Shank Width/Diameter (mm):
20.00mm
Series:
GBF;Through Coolant=No"
