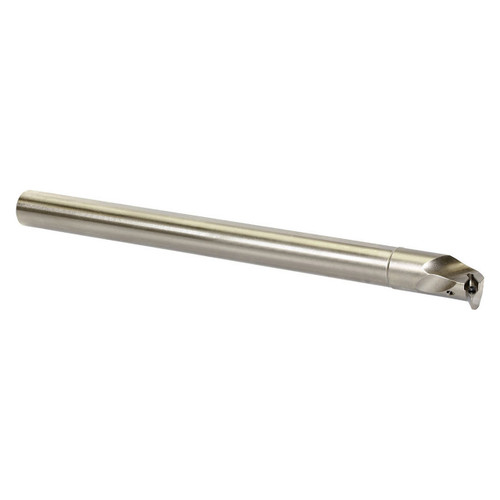

Features:
- Firmly clamps the insert in two directions with a single action maintaining good contact between the shim and the insert even during high feed rates
- Adjustable coolant discharge for various applications and insert types
- Improved insert position accuracy with greater insert life
- Improved machining stability
- Increased clamping rigidity
Product Specifications
| EDP Number | THC16085 |
| Connection Diameter (Decimal Inch) | 1.2598" |
| Connection Diameter (mm) | 32.00mm |
| Minimum Bore Diameter (Decimal Inch) | 1.5748" |
| Minimum Bore Diameter (mm) | 40.00mm |
| Shank Height (Decimal Inch) | 1.1811" |
| Shank Height (mm) | 30.00mm |
| Tool Entering Angle ( Degree) | 91 Degree |
| Application | Boring |
| Bar Type | Steel Shank |
| Coolant Through (Yes/No) | Yes |
| Hand | Left Hand |
| Insert Holding Method | Double Clamp |
| Insert Shape | 60 Degree Triangle |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
A...DTFN
Series:
DBCB;Minimum Bore Diameter (Decimal Inch)=1.5748"""
Minimum Bore Diameter (mm):
40.00mm
Hand of Holder:
Left-Hand
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Through Coolant:
Yes
