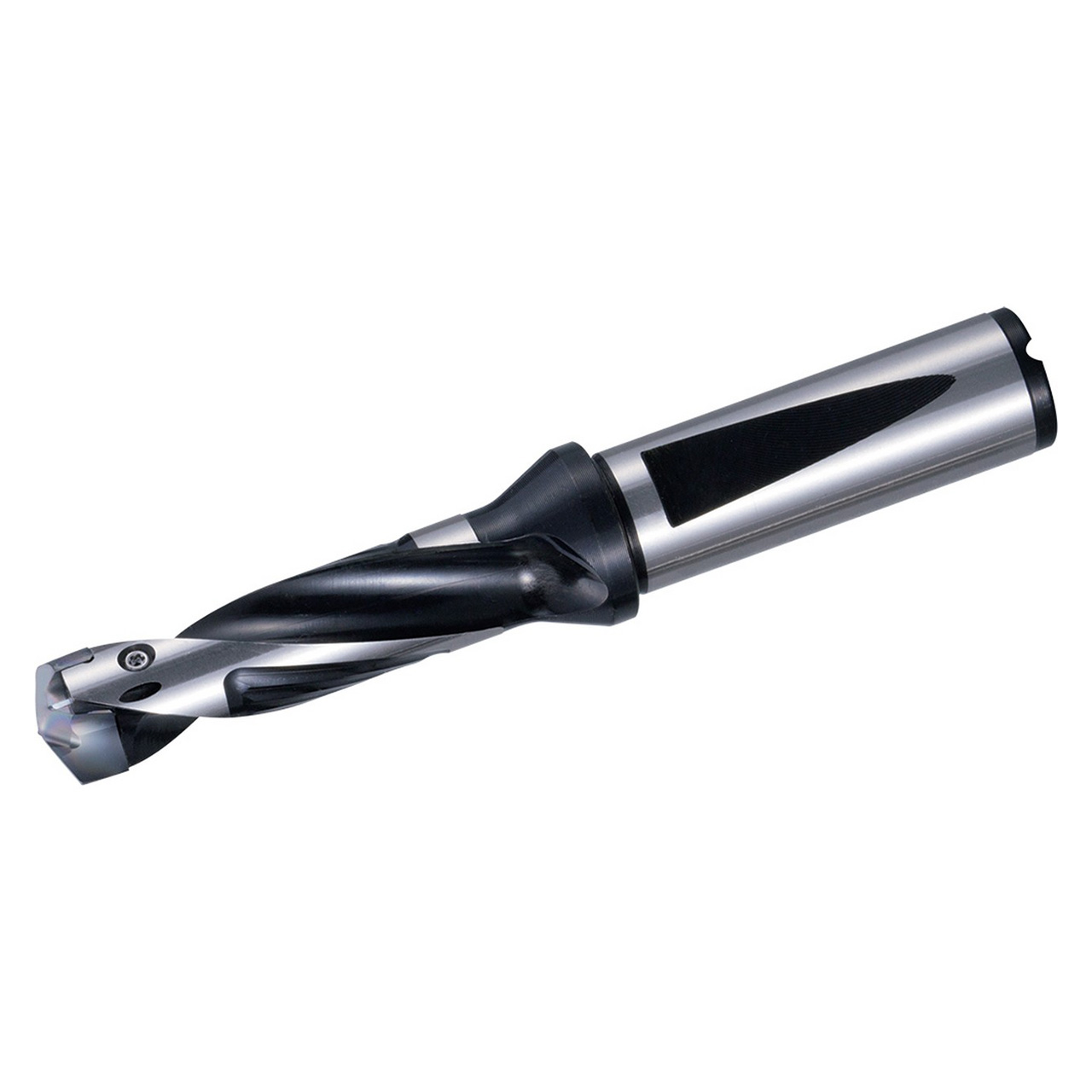

Features:
- Low cutting force design improves hole accuracy
- Optimal web thickness limits deflection
- Fine chip breaking even in deep hole drilling applications
- Easy insert replacement
- Long tool life and stable machining of various workpieces
Product Specifications
| EDP Number | THD11178 |
| Cutting Diameter (Decimal Inch) | 0.3937 - 0.4130" |
| Cutting Diameter (mm) | 10.00 - 10.49mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.3937" |
| Cutting Diameter Minimum (mm) | 10.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.4130" |
| Cutting Diameter Maximum (mm) | 10.49mm |
| Connection Diameter (Decimal Inch) | 0.6252" |
| Connection Diameter (mm) | 15.88mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.7870" |
| Contact Surface Diameter Machine Side (mm) | 19.99mm |
| Usable Length (Decimal Inch) | 1.2402" |
| Usable Length (mm) | 31.50mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Drill Depth by Diameter Ratio | 3xD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 1 |
| Shank Type | Flange Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
DRA;Minimum Drill Diameter (Inch)=25/64"""
Minimum Drill Diameter (Decimal Inch):
0.3937"
Minimum Drill Diameter (mm):
10.00mm
Maximum Drill Diameter (Inch):
13/32"
Maximum Drill Diameter (Decimal Inch):
0.4130"
Maximum Drill Diameter (mm):
10.49mm
Drill Depth by Diameter Ratio:
3xD
Maximum Drill Depth (Inch):
1-15/34"
Maximum Drill Depth (Decimal Inch):
1.2402"
Maximum Drill Depth (mm):
31.50mm
Toolholder Style:
SF…DRA
Through Coolant:
Yes
