Features:
- Low cutting force design improves hole accuracy
- Optimal web thickness limits deflection
- Fine chip breaking even in deep hole drilling applications
- Easy insert replacement
- Long tool life and stable machining of various workpieces

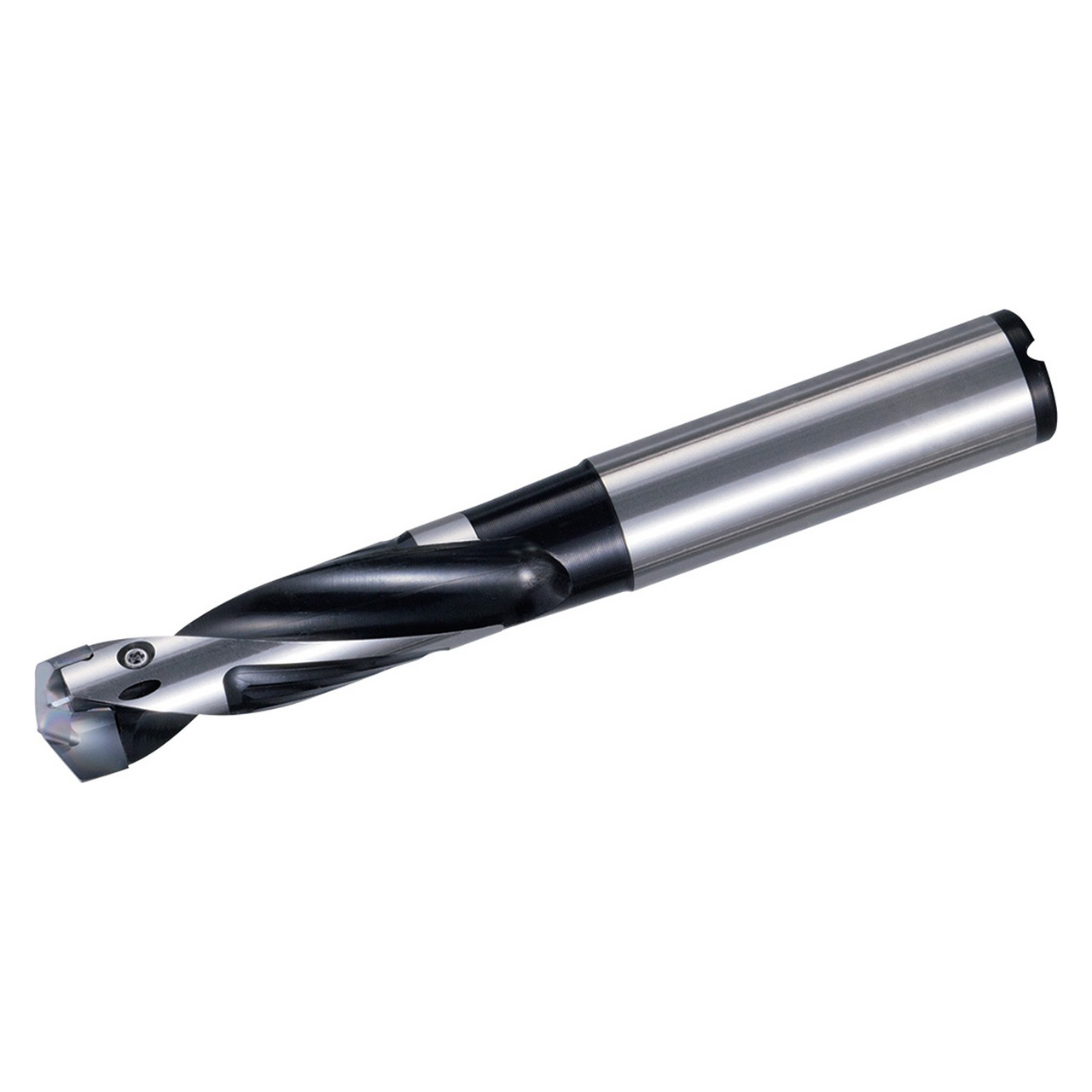

Product Specifications
EDP Number | THD11346 |
Cutting Diameter (Decimal Inch) | 0.5709 - 0.5902" |
Cutting Diameter (mm) | 14.50 - 14.99mm |
Cutting Diameter Minimum (Decimal Inch) | 0.5709" |
Cutting Diameter Minimum (mm) | 14.50mm |
Cutting Diameter Maximum (Decimal Inch) | 0.5902" |
Cutting Diameter Maximum (mm) | 14.99mm |
Connection Diameter (Decimal Inch) | 0.6252" |
Connection Diameter (mm) | 15.88mm |
Usable Length (Decimal Inch) | 1.7721" |
Usable Length (mm) | 45.01mm |
Application | Drilling |
Coolant Through (Yes/No) | Yes |
Drill Depth by Diameter Ratio | 3xD |
Hand | Right Hand |
Insert Holding Method | Screw |
Material | Steel |
Number of Flutes | 2 |
Number of Inserts | 1 |
Shank Type | Straight Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
DRA;Minimum Drill Diameter (Inch)=37/64"""
Minimum Drill Diameter (Decimal Inch):
0.5709"
Minimum Drill Diameter (mm):
14.50mm
Maximum Drill Diameter (Inch):
19/32"
Maximum Drill Diameter (Decimal Inch):
0.5902"
Maximum Drill Diameter (mm):
14.99mm
Drill Depth by Diameter Ratio:
3xD
Maximum Drill Depth (Inch):
1-49/64"
Maximum Drill Depth (Decimal Inch):
1.7721"
Maximum Drill Depth (mm):
45.01mm
Toolholder Style:
SS…DRA
Through Coolant:
Yes
