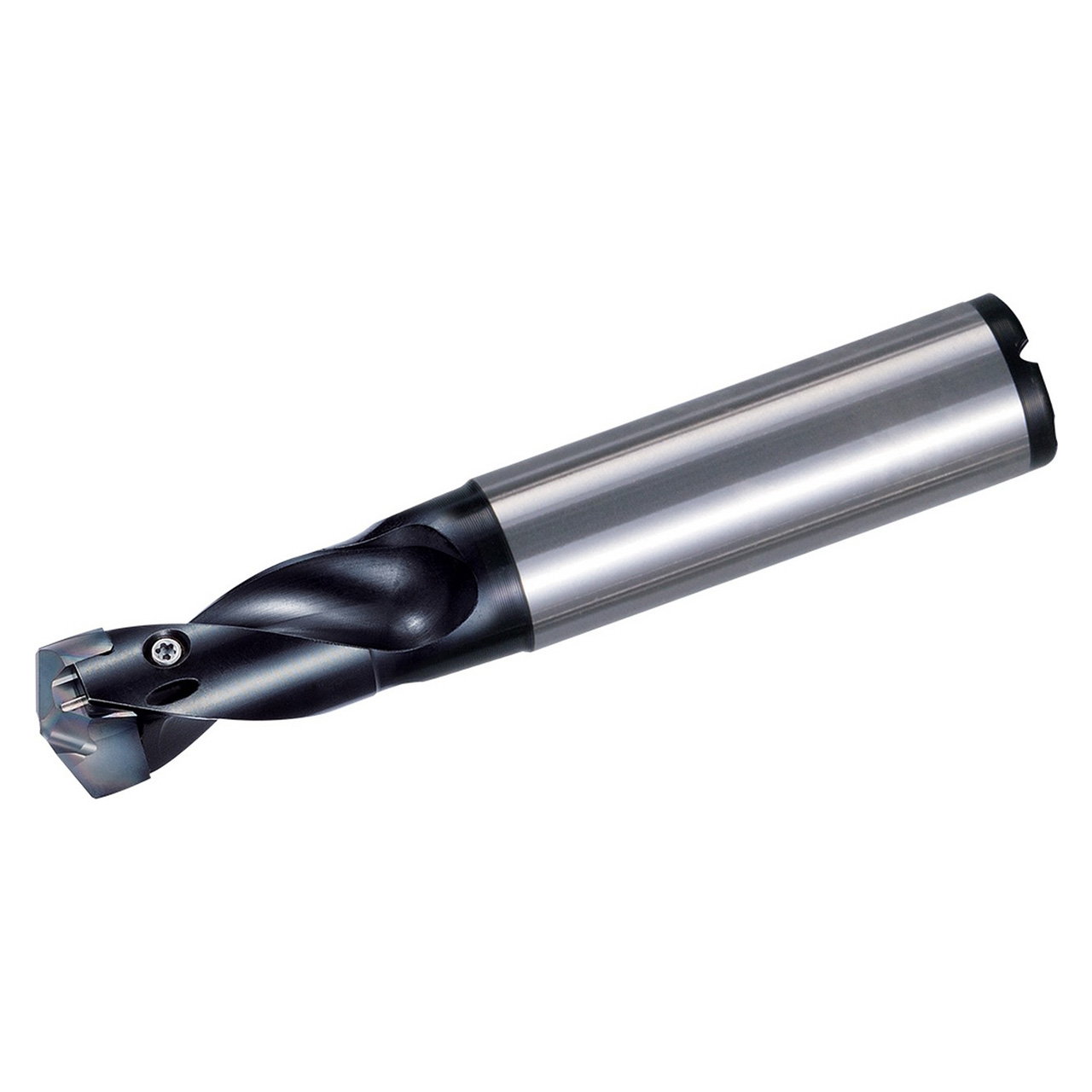

Features:
- Low cutting force design improves hole accuracy
- Optimal web thickness limits deflection
- Fine chip breaking even in deep hole drilling applications
- Easy insert replacement
- Long tool life and stable machining of various workpieces
Product Specifications
| EDP Number | THD11584 |
| Shank Width (Decimal Inch) | 0.5000" |
| Cutting Diameter (Decimal Inch) | 0.9449 - 0.9839" |
| Cutting Diameter (mm) | 24.00 - 24.99mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.9449" |
| Cutting Diameter Minimum (mm) | 24.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.9839" |
| Cutting Diameter Maximum (mm) | 24.99mm |
| Connection Diameter (Decimal Inch) | 1.0000" |
| Connection Diameter (mm) | 25.40mm |
| Usable Length (Decimal Inch) | 1.4488" |
| Usable Length (mm) | 36.80mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Drill Depth by Diameter Ratio | 1.5xD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 1 |
| Shank Type | Straight Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
DRA;Minimum Drill Diameter (Inch)=15/16"""
Minimum Drill Diameter (Decimal Inch):
0.9449"
Minimum Drill Diameter (mm):
24.00mm
Maximum Drill Diameter (Inch):
63/64"
Maximum Drill Diameter (Decimal Inch):
0.9839"
Maximum Drill Diameter (mm):
24.99mm
Drill Depth by Diameter Ratio:
1.5xD
Maximum Drill Depth (Inch):
1-29/64"
Maximum Drill Depth (Decimal Inch):
1.4488"
Maximum Drill Depth (mm):
36.80mm
Toolholder Style:
SS…DRA
Through Coolant:
Yes
