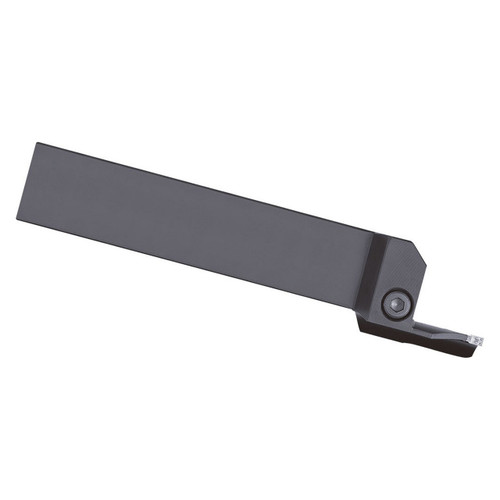

Features:
- Great for various face grooving applications
- Compatible with Neutral FMM30-03, FMN3 style inserts
Product Specifications
| EDP Number | THF00570 |
| Shank Width (mm) | 25.00mm |
| Max Depth of Cut (Decimal Inch) | 0.9843" |
| Max Depth of Cut (mm) | 25.00mm |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Minimum Face Groove Diameter (Decimal Inch) | 3.3465'' |
| Minimum Face Groove Diameter (mm) | 85.00mm |
| [DAXX] Maximum Face Groove Diameter (Decimal Inch) | 4.3307" |
| Maximum Face Groove Diameter (mm) | 110.00mm |
| Shank Height (Decimal Inch) | 0.9843" |
| Shank Height (mm) | 25.00mm |
| Tool Entering Angle ( Degree) | 1.1221 Degree |
| Application | Face Grooving |
| Grooving Type | External Face Grooving |
| Hand | Right Hand |
| Insert Holding Method | Top Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
External Face Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.9843"
Maximum Depth of Cut (mm):
25.00mm
Minimum Groove Width (Decimal Inch):
0.1181"
Minimum Groove Width (mm):
3.00mm
Maximum Groove Width (Decimal Inch):
0.1181"
Maximum Groove Width (mm):
3.00mm
Toolholder Style:
KFMS
Shank Height (Decimal Inch):
0.9843"
Shank Height (mm):
25.00mm
Series:
KFMS;Through Coolant=No"
