Features:

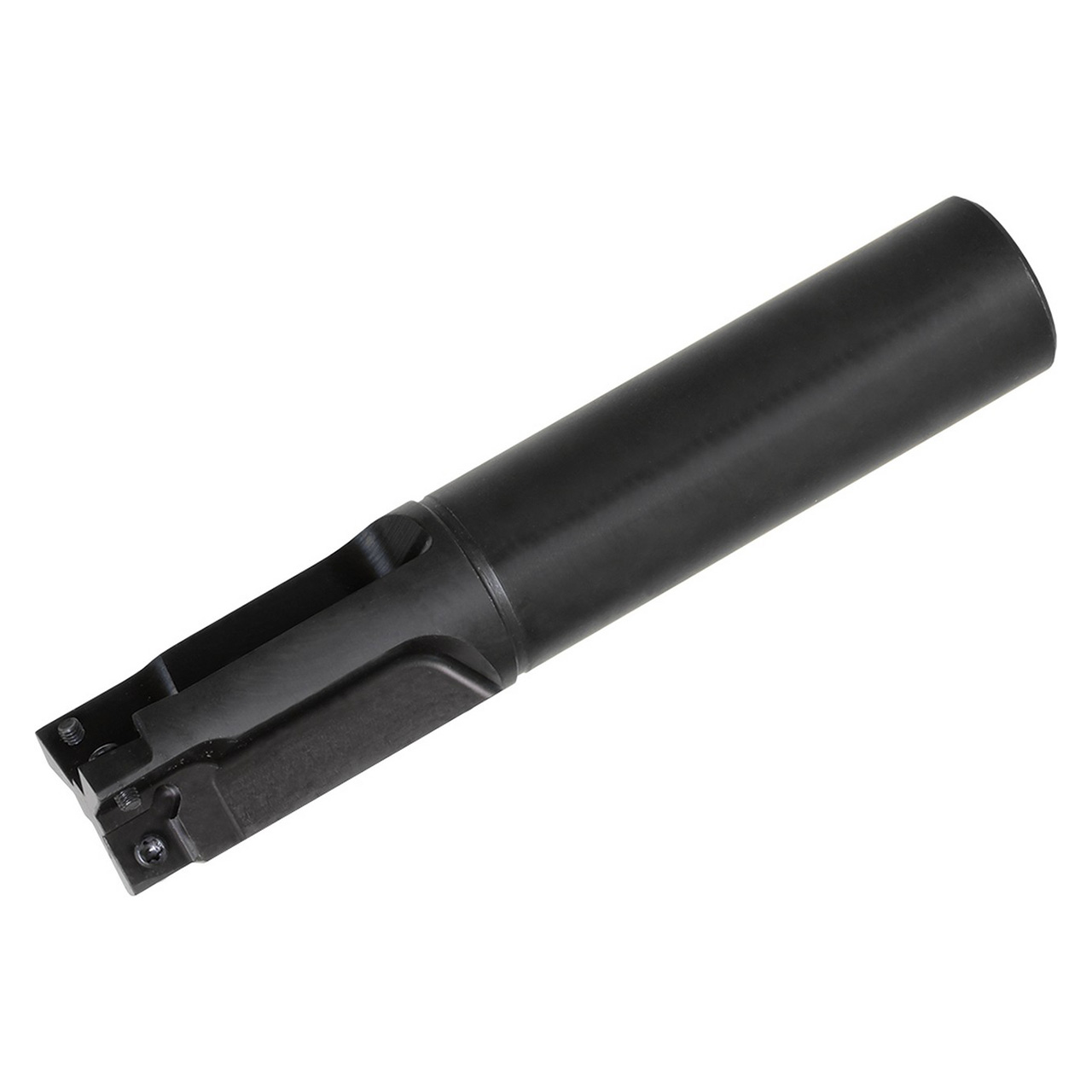

- Right-Hand, standard length, 89 Degree lead angle end mill
- Bolt countersinking, shouldering, facing applications
- Compatible with SPMT090304E-Z, SPMT090308E-Z inserts
Product Specifications
| EDP Number | THN02031 |
| Cutting Diameter (Decimal Inch) | 0.5315 - 1.1811" |
| Cutting Diameter (mm) | 13.50 - 30.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.5315" |
| Cutting Diameter Minimum (mm) | 13.50mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.1811" |
| Cutting Diameter Maximum (mm) | 30.00mm |
| Connection Diameter (Decimal Inch) | 0.9843" |
| Connection Diameter (mm) | 25.00mm |
| Tool Entering Angle ( Degree) | 3.6221 Degree |
| Application | Bolt Countersinking | Facing | Shouldering |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 3 |
| Number of Inserts | 3 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
17/32"
Cutting Diameter (Decimal Inch):
0.5315 - 1.1811"
Cutting Diameter (mm):
13.50 - 30.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Number of Cutter Inserts:
3
Toolholder Style:
MEF
