Features:

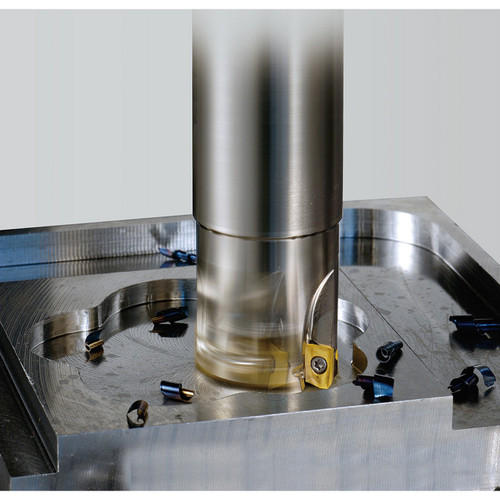

- Right-Hand, standard length, 90 Degree lead angle end mill
- Shouldering, facing, slotting, ramping, helical milling, plunging applications
- Compatible with BDMT0703ER-JT, BDMT0703ER-JS inserts
Product Specifications
| EDP Number | THN03610 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Cutting Diameter (Decimal Inch) | 0.5512" |
| Cutting Diameter (mm) | 14.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.5512" |
| Cutting Diameter Minimum (mm) | 14.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.5512" |
| Cutting Diameter Maximum (mm) | 14.00mm |
| Connection Diameter (Decimal Inch) | 0.4724" |
| Connection Diameter (mm) | 12.00mm |
| Tool Entering Angle ( Degree) | 1.4173 Degree |
| Application | Facing | Helical Milling | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
35/64"
Cutting Diameter (Decimal Inch):
0.5512"
Cutting Diameter (mm):
14.00mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Number of Cutter Inserts:
2
Toolholder Style:
MECX
