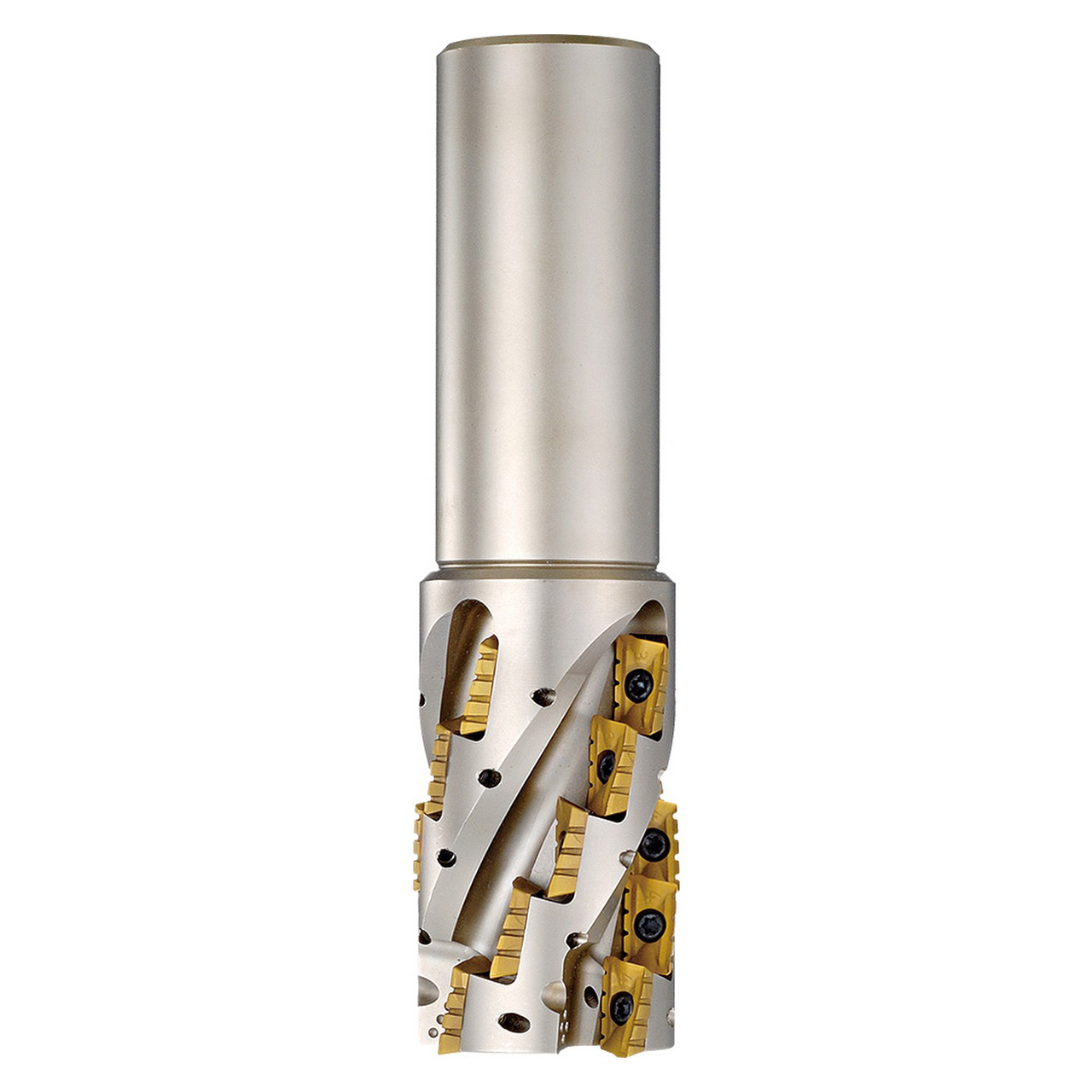

Kyocera Precision Tools THN03860 | MECH1000W1001142T 1.0000" Diameter x 1.4567" Max Depth of Cut 2 Flute Steel Helical End Mill

$414.84
Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
1.0000"
Cutting Diameter (Decimal Inch):
25.40mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Lead Angle:
90°
Series:
MEC;Through Coolant=No"
SKU:
23233196
Weight:
1.87 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

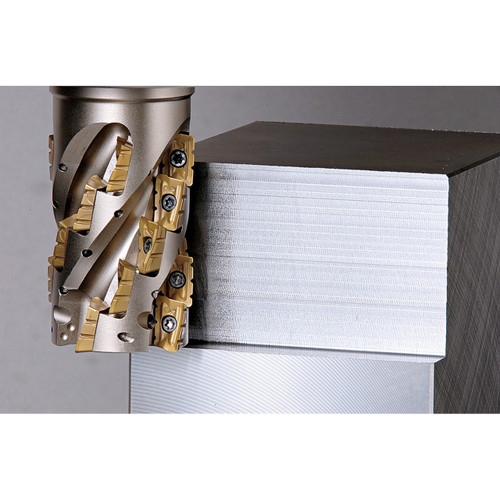

  • Low cutting force and reduced chattering for high-efficiency milling
  • Great for various milling applications
  • Compatible with: BDMT11T308ER-N2, BDMT11T308ER-N3 style inserts

Product Specifications
EDP NumberTHN03860
Maximum Depth of Cut (Decimal Inch)1.4567"
Cutting Diameter (Decimal Inch)1.0000"
Cutting Diameter (mm)25.40mm
Cutting Diameter Minimum (Decimal Inch)1.0000"
Cutting Diameter Minimum (mm)25.40mm
Cutting Diameter Maximum (Decimal Inch)1.0000"
Cutting Diameter Maximum (mm)25.40mm
Connection Diameter (Decimal Inch)1.0000"
Connection Diameter (mm)25.40mm
Tool Entering Angle ( Degree)0.5910 Degree
ApplicationFacing | Shouldering | Slotting
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts8
Shank TypeStandard Length
Weldon FlatYes
