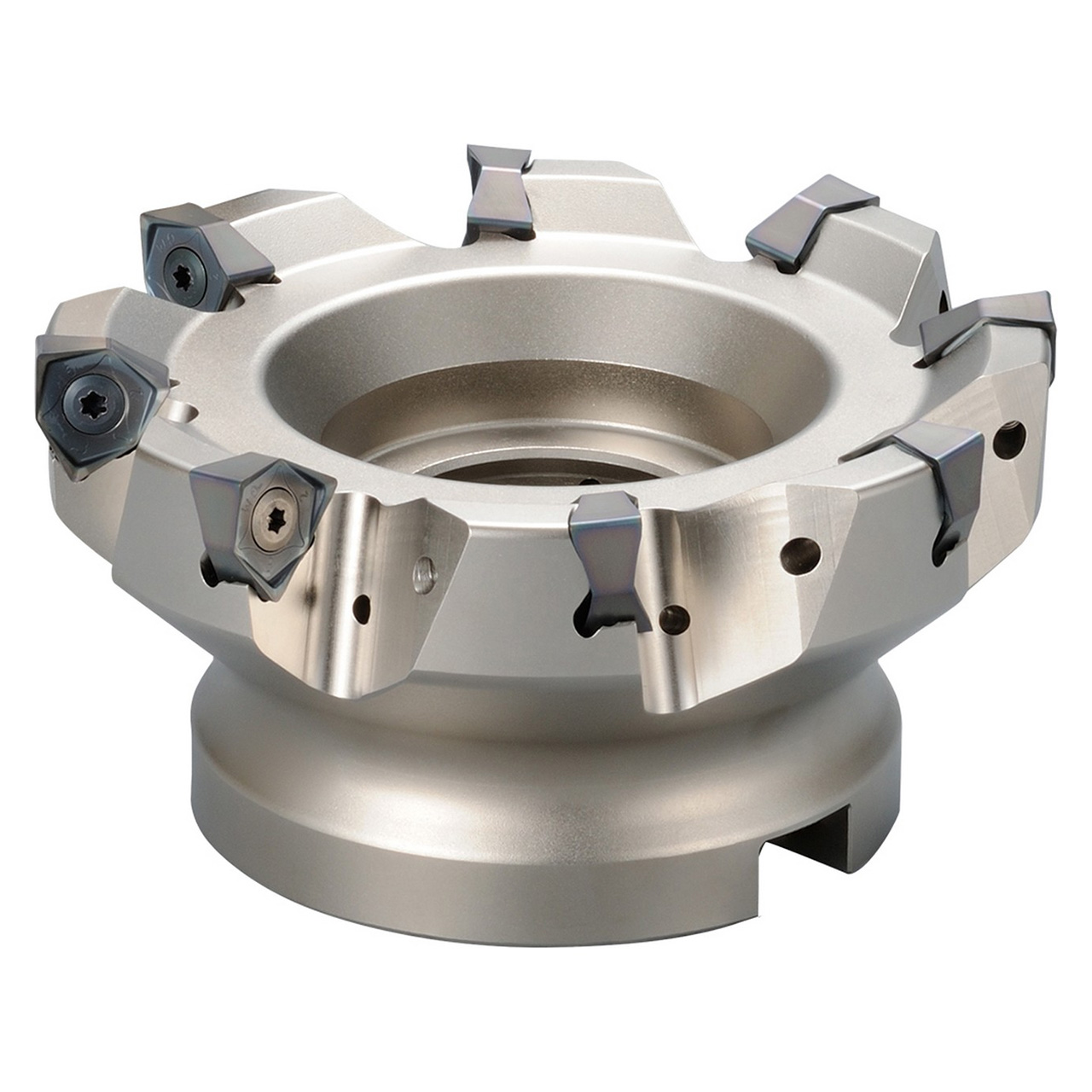

Features:
- 90 Degree Lead angle face mill
- Application: shouldering, facing, slotting, plunging
- Economical double-sided 6-edge inserts
- Sharp cutting due to lower cutting forces
- Resistant to chattering and applicable to long overhang
Product Specifications
| EDP Number | THN04696 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150" |
| Cutting Diameter (Decimal Inch) | 9.8425" |
| Cutting Diameter (mm) | 250.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 9.8425" |
| Cutting Diameter Minimum (mm) | 250.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 9.8425" |
| Cutting Diameter Maximum (mm) | 250.00mm |
| Cutting Diameter Maximum (mm) | 2.3622" |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 5.5906" |
| Contact Surface Diameter Machine Side (mm) | 142.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Facing, Plunging, Shouldering, Slotting |
| Cutter Pitch | Coarse Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 12 |
| Number of Inserts | 12 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
9-27/32"
Cutting Diameter (Decimal Inch):
9.8425"
Cutting Diameter (mm):
250.00mm
Maximum Depth of Cut (Inch):
5/16"
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8mm
Arbor Hole Diameter (Inch):
2-23/64"
Arbor Hole Diameter (Decimal Inch):
2.3622"
Arbor Hole Diameter (mm):
60.00mm
Series:
MFWN;Cutter Style=MFWN"
Number of Cutter Inserts:
12
