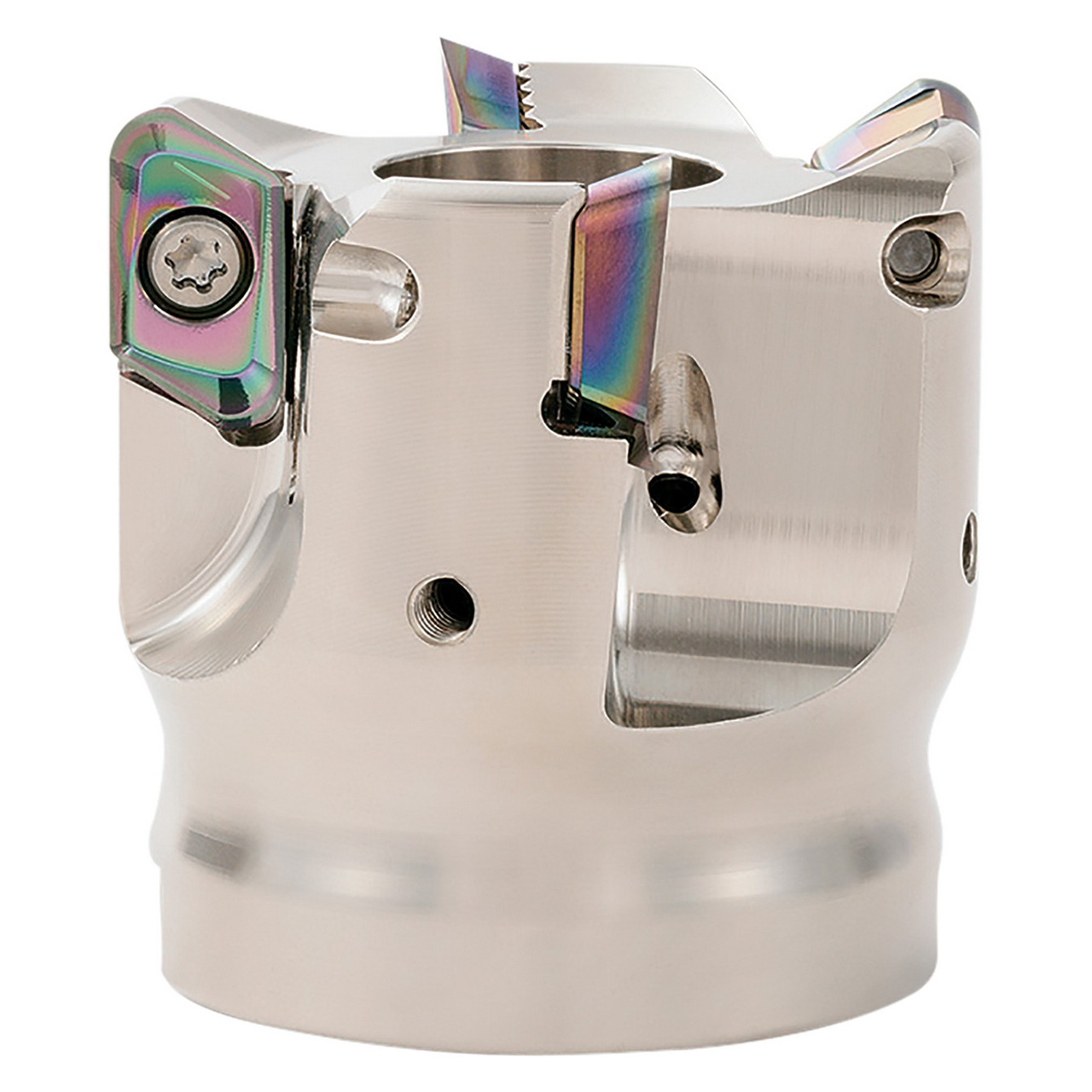

Kyocera Precision Tools THN08435 | MEAS050R134TM 1.9685" Diameter x 90 Degree Angle 4 Flute Steel Indexable Face Mill

$675.03
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-31/32"
Cutting Diameter (Decimal Inch):
1.9685"
Cutting Diameter (mm):
50.00mm
Maximum Depth of Cut (Inch):
15/32"
Maximum Depth of Cut (Decimal Inch):
0.4724"
Maximum Depth of Cut (mm):
12mm
Arbor Hole Diameter (Inch):
55/64"
Arbor Hole Diameter (Decimal Inch):
0.8661"
Arbor Hole Diameter (mm):
22.00mm
Series:
MEAS;Cutter Style=MEAS"
Number of Cutter Inserts:
4
SKU:
23233913
Weight:
1.37 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 90 Degree Lead angle face mill
  • Application: shouldering, facing, slotting, ramping, contouring, pocketing, helical milling, plunging
  • High efficiency milling cutters for aluminum machining
  • Grooved insert pockets provide secure clamping to ensure stable, high speed machining
  • Sharp cutting edge with low cutting force design

Product Specifications
EDP NumberTHN08435
Maximum Depth of Cut (Decimal Inch)0.4724"
Maximum Depth of Cut (mm)6.00mm
Cutting Diameter (Decimal Inch)1.9685"
Cutting Diameter (mm)50.00mm
Cutting Diameter Minimum (Decimal Inch)1.9685"
Cutting Diameter Minimum (mm)50.00mm
Cutting Diameter Maximum (Decimal Inch)1.9685"
Cutting Diameter Maximum (mm)50.00mm
Cutting Diameter Maximum (mm)0.8661"
Connection Bore Diameter (mm)22.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.7717"
Contact Surface Diameter Machine Side (mm)45.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationContouring, Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting
Coolant Through (Yes/No)Yes
Cutter PitchStandard Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes4
Number of Inserts4
