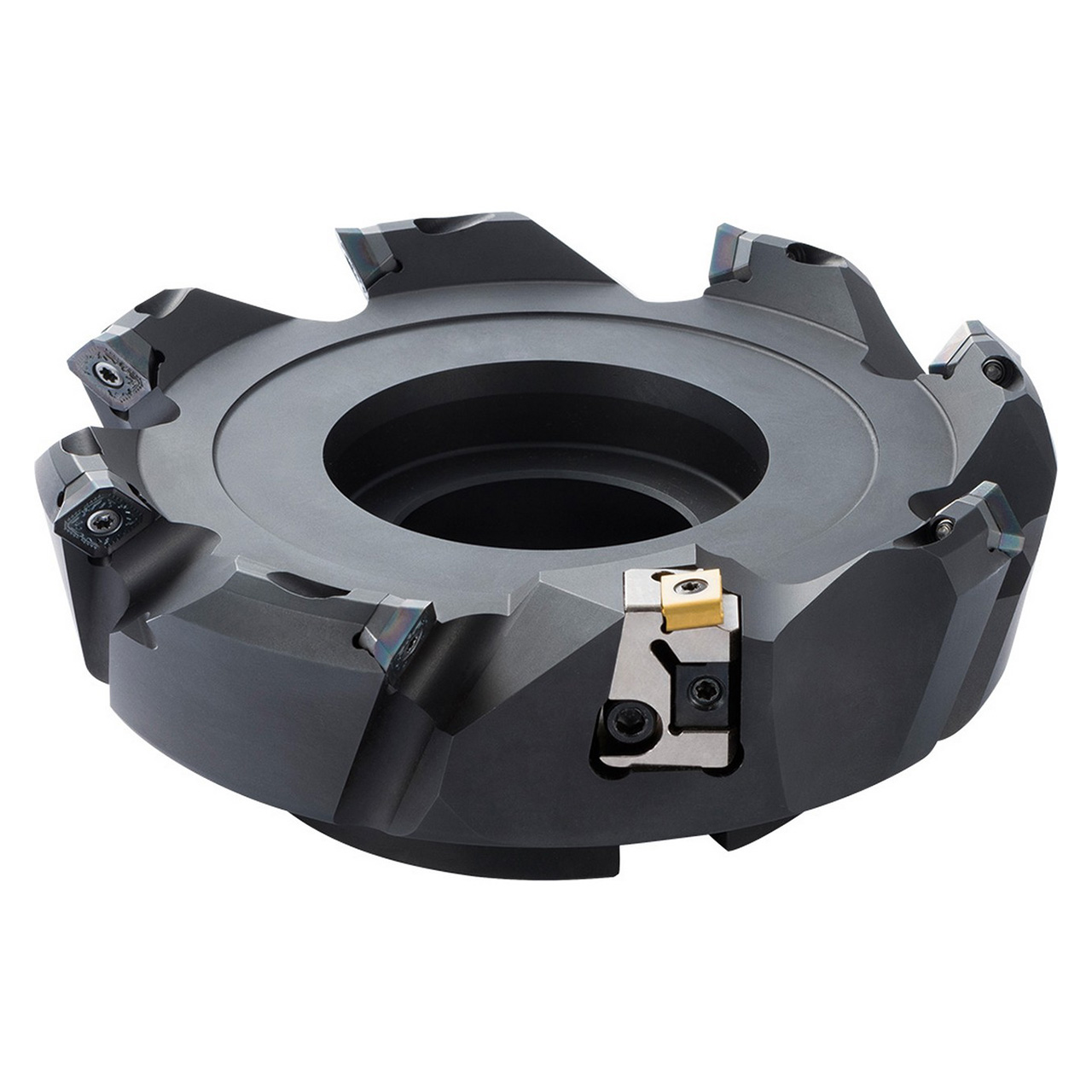

Features:

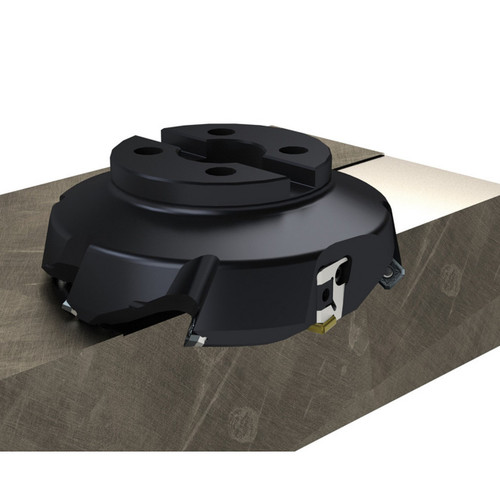

- 45 Degree Lead angle finishing face mill with Wiper Insert Pocket
- Delivers high quality surface finishes by roughing and finishing at the same time
- Longer tool life by reducing front edge runout
Product Specifications
| EDP Number | THN08595 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Maximum Depth of Cut (mm) | 8.00mm |
| Cutting Diameter (Decimal Inch) | 9.8425 - 10.1850" |
| Cutting Diameter (mm) | 250.00 - 258.70mm |
| Cutting Diameter Minimum (Decimal Inch) | 9.8425" |
| Cutting Diameter Minimum (mm) | 250.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 10.1850" |
| Cutting Diameter Maximum (mm) | 258.70mm |
| Cutting Diameter Maximum (mm) | 1.8752" |
| Connection Bore Diameter (mm) | 47.63mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 8.7402" |
| Contact Surface Diameter Machine Side (mm) | 222.00mm |
| Tool Entering Angle ( Degree) | 45 Degree |
| Application | Chamfering, Facing |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 11 |
| Number of Inserts | 11 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
10-3/16"
Cutting Diameter (Decimal Inch):
10.1850"
Cutting Diameter (mm):
258.70mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
1-7/8"
Arbor Hole Diameter (Decimal Inch):
1.8752"
Arbor Hole Diameter (mm):
47.63mm
Series:
MFSE;Cutter Style=MFSE"
Number of Cutter Inserts:
11
