Kyocera Precision Tools THN08653 | MFH40M16046T 1.1417-1.5748" Diameter x 0.9449" Shank Height 6 Flute Steel High-Feed End Mill

$453.18
Brand:
Kyocera Precision Tools
Series:
MFHM;Cutting Diameter (Inch)=1-37/64"""
Cutting Diameter (Decimal Inch):
1.5748"
Cutting Diameter (mm):
40.00mm
Insert Style:
MFH
Maximum Depth of Cut (Inch):
3/32"
Maximum Depth of Cut (Decimal Inch):
0.0984"
Maximum Depth of Cut (mm):
2.5mm
SKU:
23234129
Weight:
0.78 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Large D.O.C. dramatically improves machining efficiency
  • Excellent performance in a wide range of applications, including automotive parts, difficult-to-cut materials, and molds

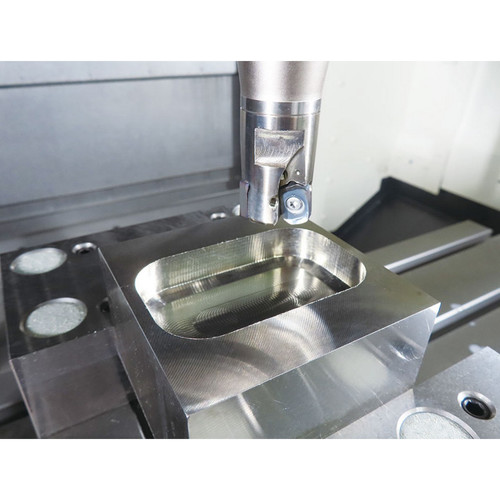

  • Achieves high efficiency machining in various shouldering, slotting, helical milling, and ramping applications
  • Convex cutting edge design reduces impact when entering workpiece

Product Specifications
EDP NumberTHN08653
Maximum Depth of Cut (Decimal Inch)0.0984"
Maximum Depth of Cut (mm)10.00mm
Cutting Diameter (Decimal Inch)1.1417 - 1.5748"
Cutting Diameter (mm)29.00 - 40.00mm
Cutting Diameter Minimum (Decimal Inch)1.1417"
Cutting Diameter Minimum (mm)29.00mm
Cutting Diameter Maximum (Decimal Inch)1.5748"
Cutting Diameter Maximum (mm)40.00mm
Connection Diameter (Decimal Inch)0.6693"
Connection Diameter (mm)17.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.1811"
Contact Surface Diameter Machine Side (mm)30.00mm
Shank Height (Decimal Inch)0.9449"
Shank Height (mm)24.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationHelical Milling | High Feed | Ramping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes6
Number of Inserts6
Shank TypeModular Connection

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
