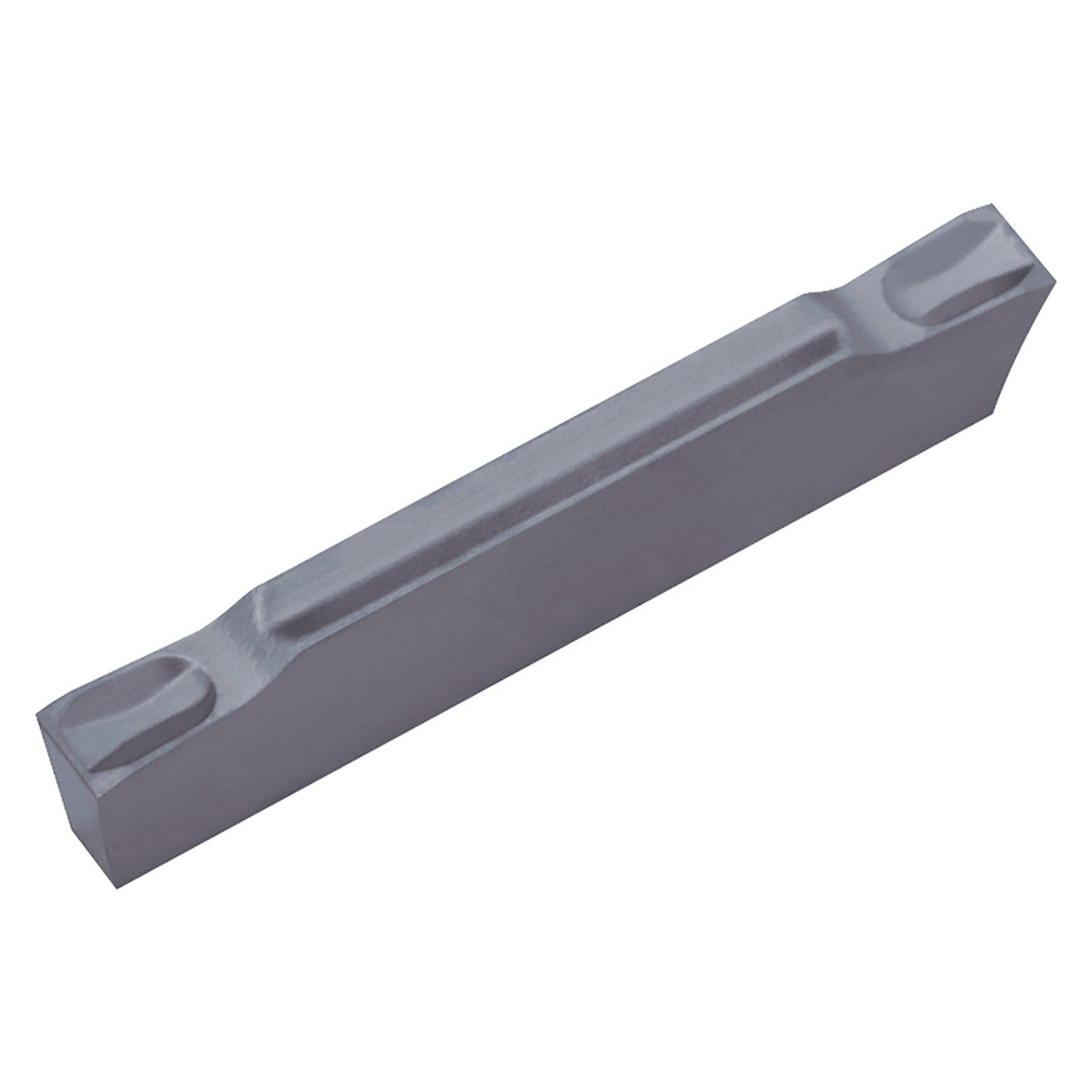

Features:
- Insert for deep grooving, cut-off
- Cut-off/sharp cutting/oriented with lead angle
- 2 Cutting edges
- TiAlN base PVD coated super micro-grain carbide with good wear and oxidation resistance
- Application: Stable and reliable high precision cutting of steel
Product Specifications
| Tool Number | TJG12713 |
| Max Depth of Cut (Decimal Inch) | 0.4528" |
| Max Depth of Cut (mm) | 11.50mm |
| Cutting Width (Decimal Inch) | 0.0591" |
| Cutting Width (mm) | 1.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0591" |
| Cutting Width Minimum (mm) | 1.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0591" |
| Cutting Width Maximum (mm) | 1.50mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | Cut-Off | External Deep Grooving | External Grooving |
| Chipbreaker | MT |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR915 |
| Insert Size | 1520 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GMM
Insert Size:
1520
Material:
Carbide;Cutting Width (Decimal Inch)=0.0591"""
Cutting Width (mm):
1.50mm
Maximum Depth of Cut (Decimal Inch):
0.4528"
Maximum Depth of Cut (mm):
11.50mm
Manufacturer's Grade:
PR915
Finish/Coating:
PVD
