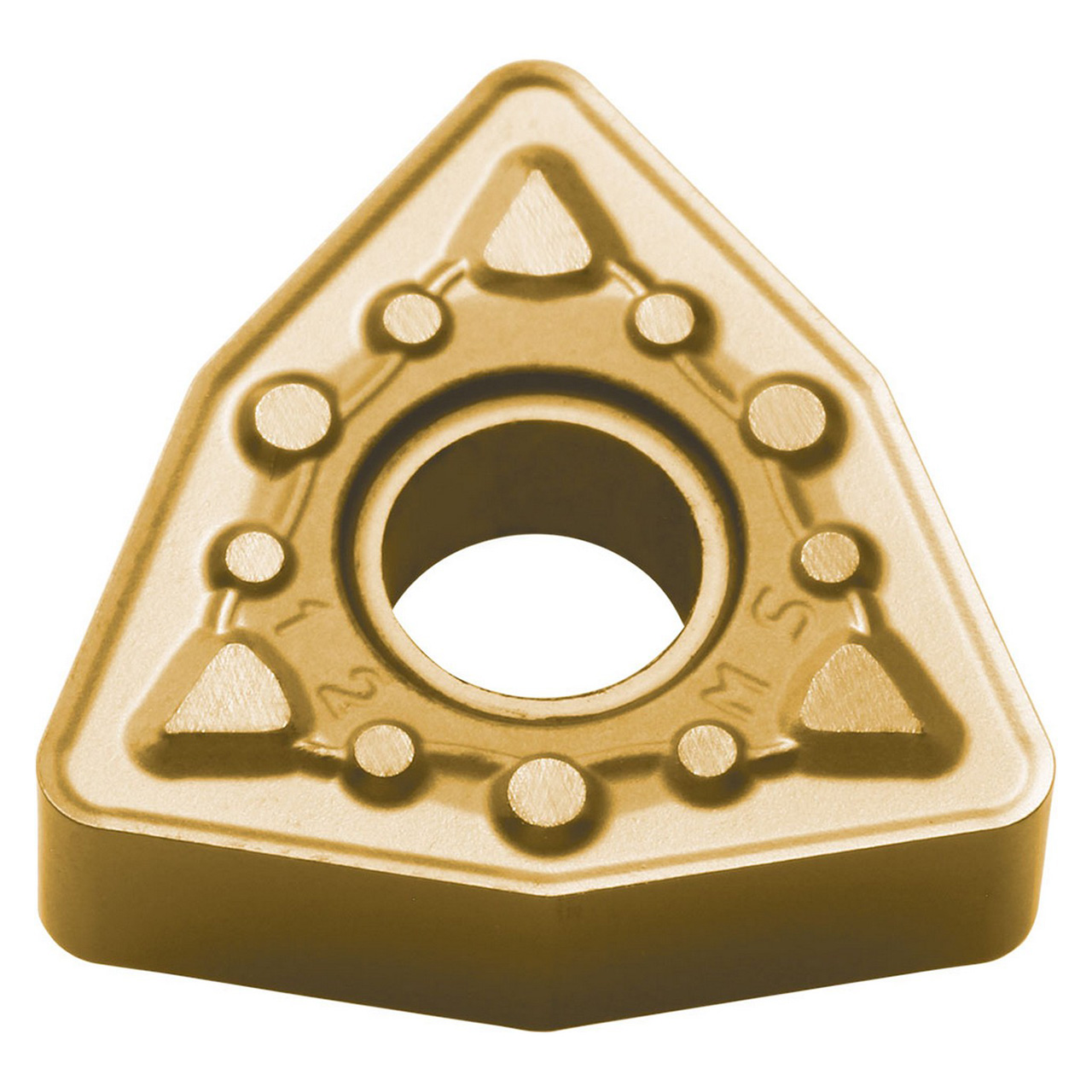

Features:
- Insert for external turning, facing, boring, internal facing
- Stainless steel/HRSA with 6 cutting edges
- Specialized carbide substrate for stainless steel cutting, excellent wear resistance
- Application: Continuous to light interrupted cutting of stainless steel
Product Specifications
| EDP Number | TJU08631 |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Boring | External Turning | Facing | Internal Facing |
| Chipbreaker | MS |
| Coating Process | CVD |
| Cutting Range | Medium Roughing |
| Hand | Neutral |
| Insert Grade | CA6515 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Trigon |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 431 |
| Material | Carbide |
| Number of Cutting Edges | 6 |
| Primary Workpiece Material | Stainless Steel (M) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
WNMG
Insert Size:
431
Material:
Carbide;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
CA6515
