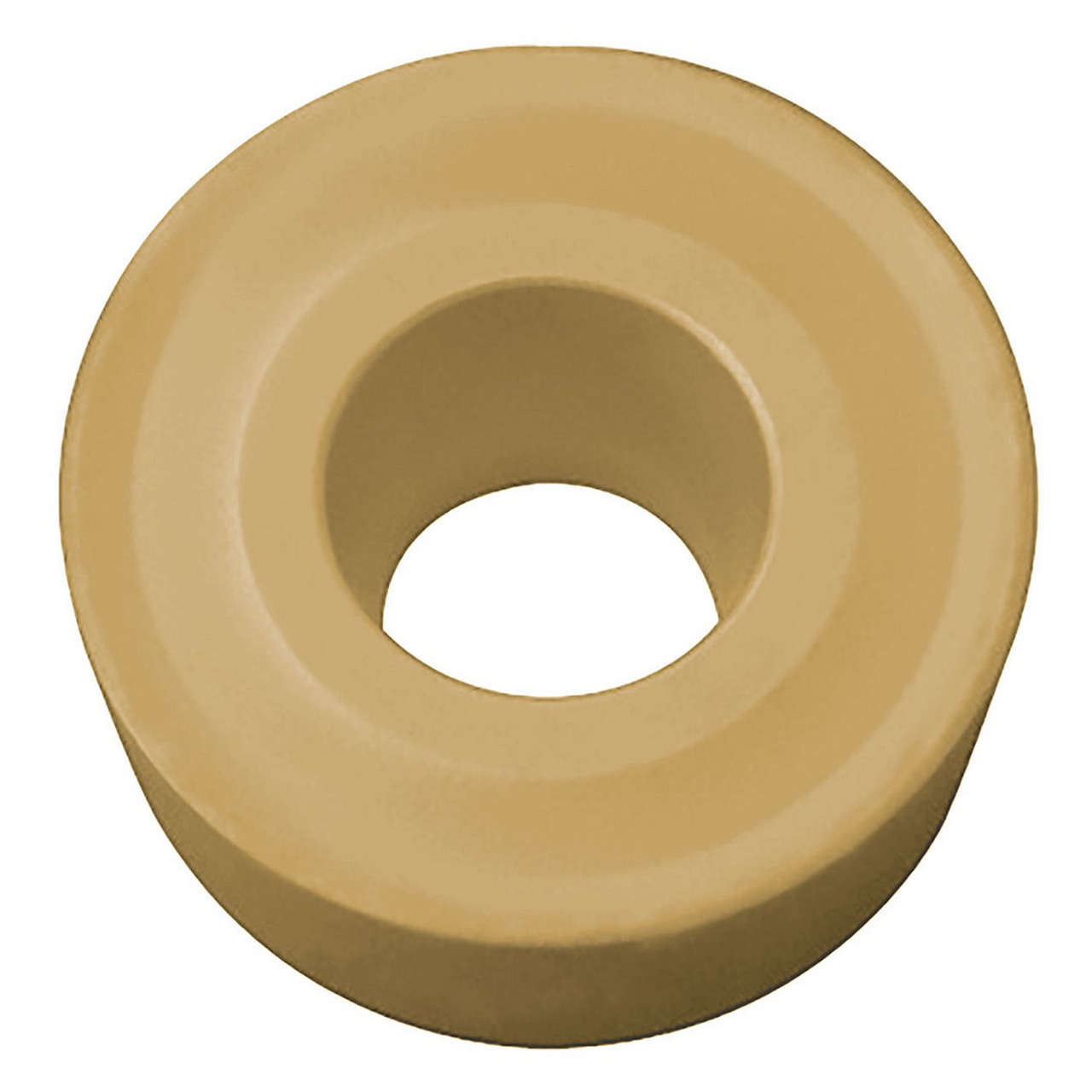

Kyocera Precision Tools TJV04400 | RCMX1003M0 CA6525 0.394" Circle Diameter x 1/8" Thickness CVD Coated Carbide Indexable Turning Insert

$9.67
Brand:
Kyocera Precision Tools
Insert Style:
RCMX
Insert Size:
1003
Material:
Carbide;Inscribed Circle (Decimal Inch)=0.3940"""
Inscribed Circle (mm):
10.00mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Manufacturer's Grade:
CA6525
SKU:
23236930
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, undercutting
  • Specialized carbide substrate for stainless steel cutting, excellent notching resistance and toughness
  • Application: First choice for general cutting of stainless steel, from finishing to roughing, continuous to interruption

Product Specifications
EDP NumberTJV04400
Inscribed Circle (Inch)0.394"
Inscribed Circle (mm)10.00mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Turning | Facing | Undercutting
Coating ProcessCVD
Cutting RangeMedium
HandNeutral
Insert GradeCA6525
Insert Holding MethodScrew or Clamp
Insert ShapeRound
Insert Size1003
MaterialCarbide
Primary Workpiece MaterialStainless Steel (M)
Usage ClassificationLight Interruption
