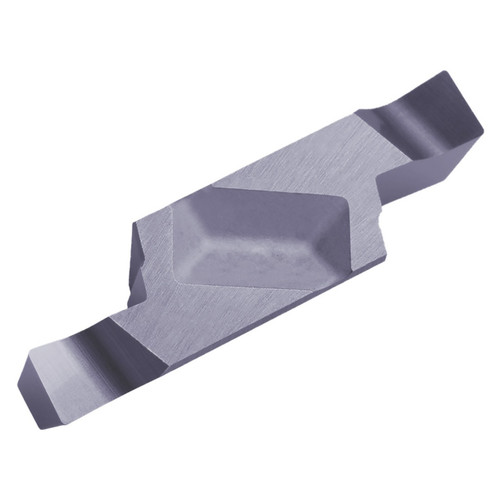

Kyocera Precision Tools TKE15821 | GVFL340020A PR1225 0.1339" Cutting width x 0.4724" Insert Length PVD Coated Carbide Grooving Insert

$29.89
Brand:
Kyocera Precision Tools
Insert Style:
GVF
Insert Size:
340020
Material:
Carbide;Cutting Width (Decimal Inch)=0.1339"""
Cutting Width (mm):
3.40mm
Maximum Depth of Cut (Decimal Inch):
0.0906"
Maximum Depth of Cut (mm):
2.30mm
Manufacturer's Grade:
PR1225
Finish/Coating:
PVD
SKU:
23238402
Weight:
0.13 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for face grooving
  • 2 Cutting edges
  • Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
  • Application: Light interrupted to interrupted cutting of stainless steel

Product Specifications
Tool NumberTKE15821
Max Depth of Cut (Decimal Inch)0.0906"
Max Depth of Cut (mm)2.30mm
Cutting Width (Decimal Inch)0.1339"
Cutting Width (mm)3.40mm
Cutting Width Minimum (Decimal Inch)0.1339"
Cutting Width Minimum (mm)3.40mm
Cutting Width Maximum (Decimal Inch)0.1339"
Cutting Width Maximum (mm)3.40mm
Insert Length (Decimal Inch)0.4724"
Insert Length (mm)12.00mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)0.177"
Thickness (mm)4.50mm
ApplicationFace Grooving
ChipbreakerA
Coating ProcessPVD
Coolant Through (Yes/No)CVD
Cutting RangeMedium Roughing
HandLeft Hand
Insert Holding MethodClamp
Insert GradePR1225
Insert Size340020
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
