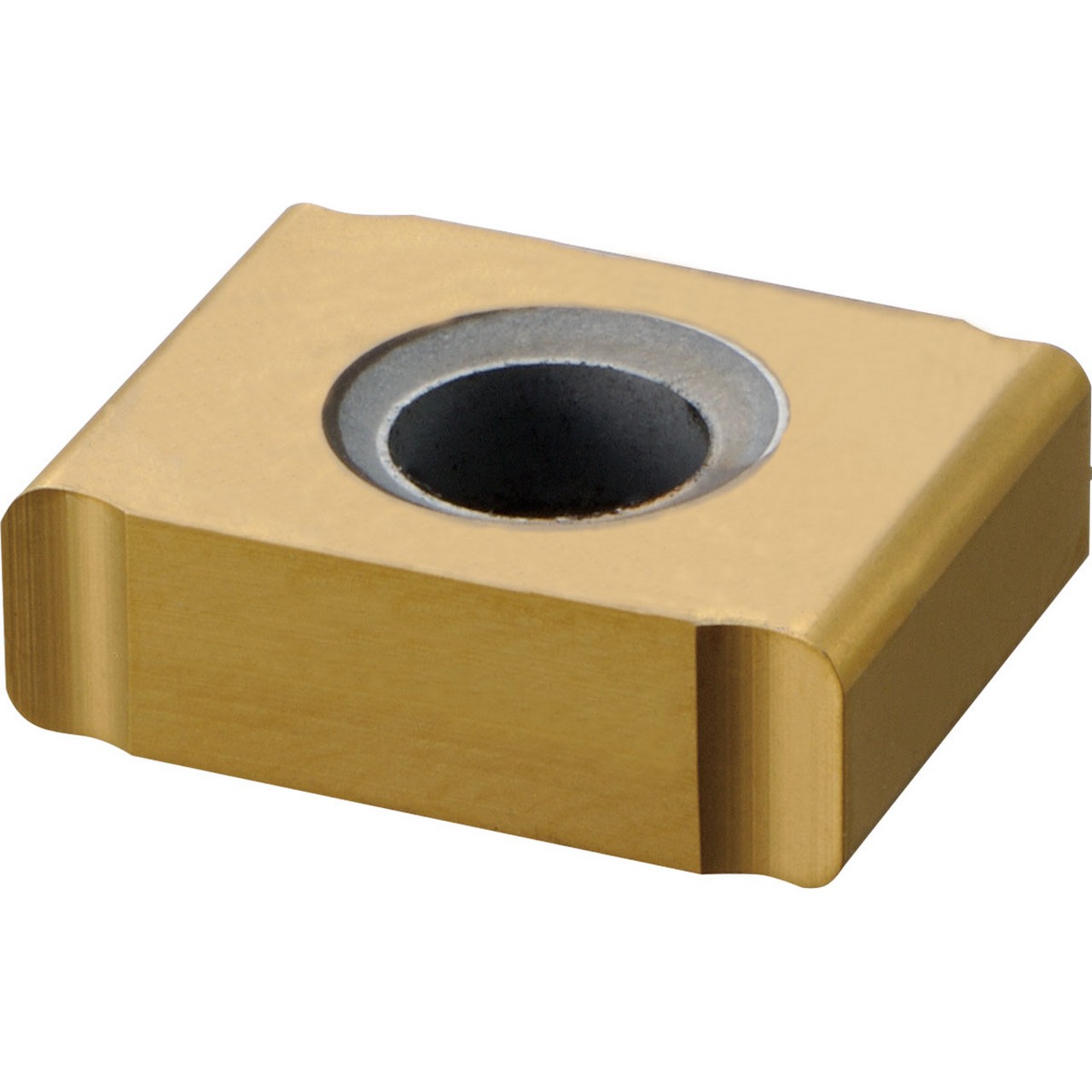

- Insert for slot milling
- 2 Cutting edges
- TiN+TiCN+TiN based multi-layer PVD coated carbide
- Application: For carbon steel, alloy steel, stainless steel, heat-resistant alloy, and cast iron
- For medium speed machining
Product Specifications
| EDP Number | TKJ04584 |
| Insert Included Angle (Degree) | 90 Degree |
| [INSL] Insert Length (Decimal Inch) | 0.5000" |
| [INSL] Insert Length (mm) | 12.70mm |
| [RE] Corner Radius (Inch) | 1/32" |
| [RE] Corner Radius (mm) | 0.80mm |
| [S] Thickness (Inch) | 0.217" |
| [S] Thickness (mm) | 5.50mm |
| Application | Slot Milling |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
1255-08
Material:
Carbide;Finish/Coating=PVD
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.50mm
