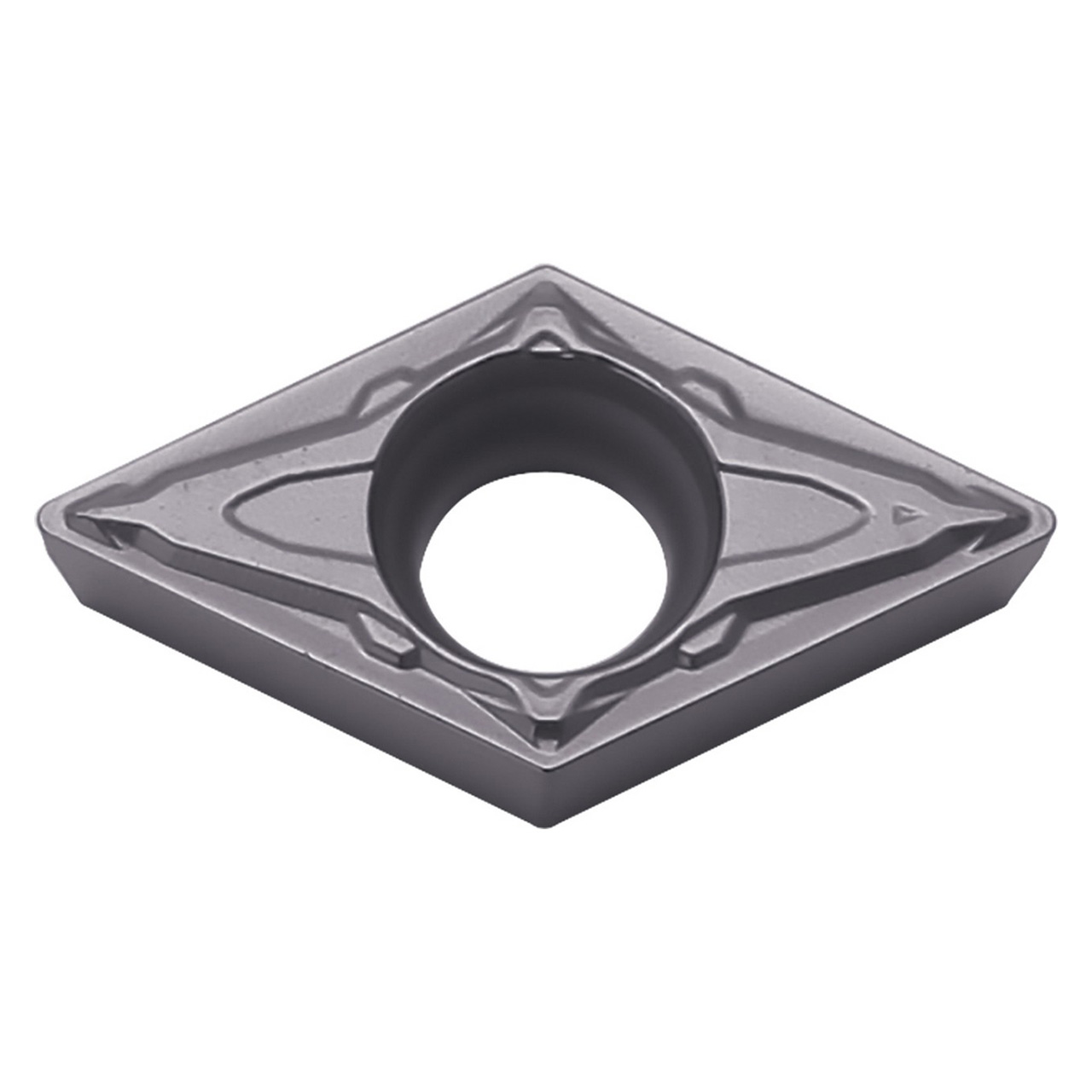

Kyocera Precision Tools TLC03486 | DCMT21505PP PR1535 1/4" Circle Diameter x 3/32" Thickness PVD Coated Carbide Indexable Turning Insert

$10.73
Brand:
Kyocera Precision Tools
Insert Style:
DCMT
Insert Size:
21505
Material:
Carbide;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
PR1535
SKU:
23241562
Weight:
0.06 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, copying, back boring
  • 2 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
EDP NumberTLC03486
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBack Boring | Copying | External Turning
ChipbreakerPP
Coating ProcessPVD
Cutting RangeFinishing
HandNeutral
Insert GradePR1535
Insert Holding MethodScrew or Clamp
Insert Shape55 Degree Diamond
Insert Included Angle ( Degree)55 Degree
Insert Size21505
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialStainless Steel (M)|Heat-Resistant Alloy (S)|(S) Titanium Alloy
Usage ClassificationLight Interruption
