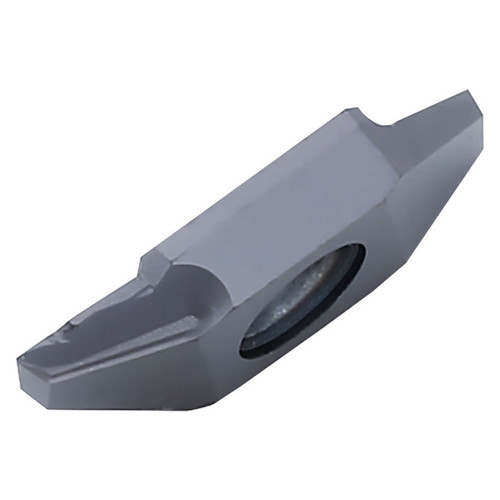

Features:
- Insert for back turning
- 2 Cutting edges
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for titanium alloy and precipitation hardened stainless steel
Product Specifications
| EDP Number | TLC16610 |
| Cutting Width (Decimal Inch) | 0.1496" |
| Cutting Width (mm) | 3.80mm |
| Cutting Width Minimum (Decimal Inch) | 0.1496" |
| Cutting Width Minimum (mm) | 3.80mm |
| Cutting Width Maximum (Decimal Inch) | 0.1496" |
| Cutting Width Maximum (mm) | 3.80mm |
| Corner Radius (Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Thickness (Inch) | 0.157" |
| Thickness (mm) | 4.00mm |
| Application | Back Turning |
| Chipbreaker | GQ |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Grade | PR1535 |
| Insert Holding Method | Screw |
| Insert Shape | Irregular |
| Insert Size | 16 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel (M)|Heat-Resistant Alloy (S)|(S) Titanium Alloy |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TKFB
Insert Size:
16
Material:
Carbide;Thickness (Decimal Inch)=0.1570"""
Thickness (mm):
4.00mm
Corner Radius (Decimal Inch):
0.0020"
Corner Radius (mm):
0.05mm
Manufacturer's Grade:
PR1535
interval quantity:
10
