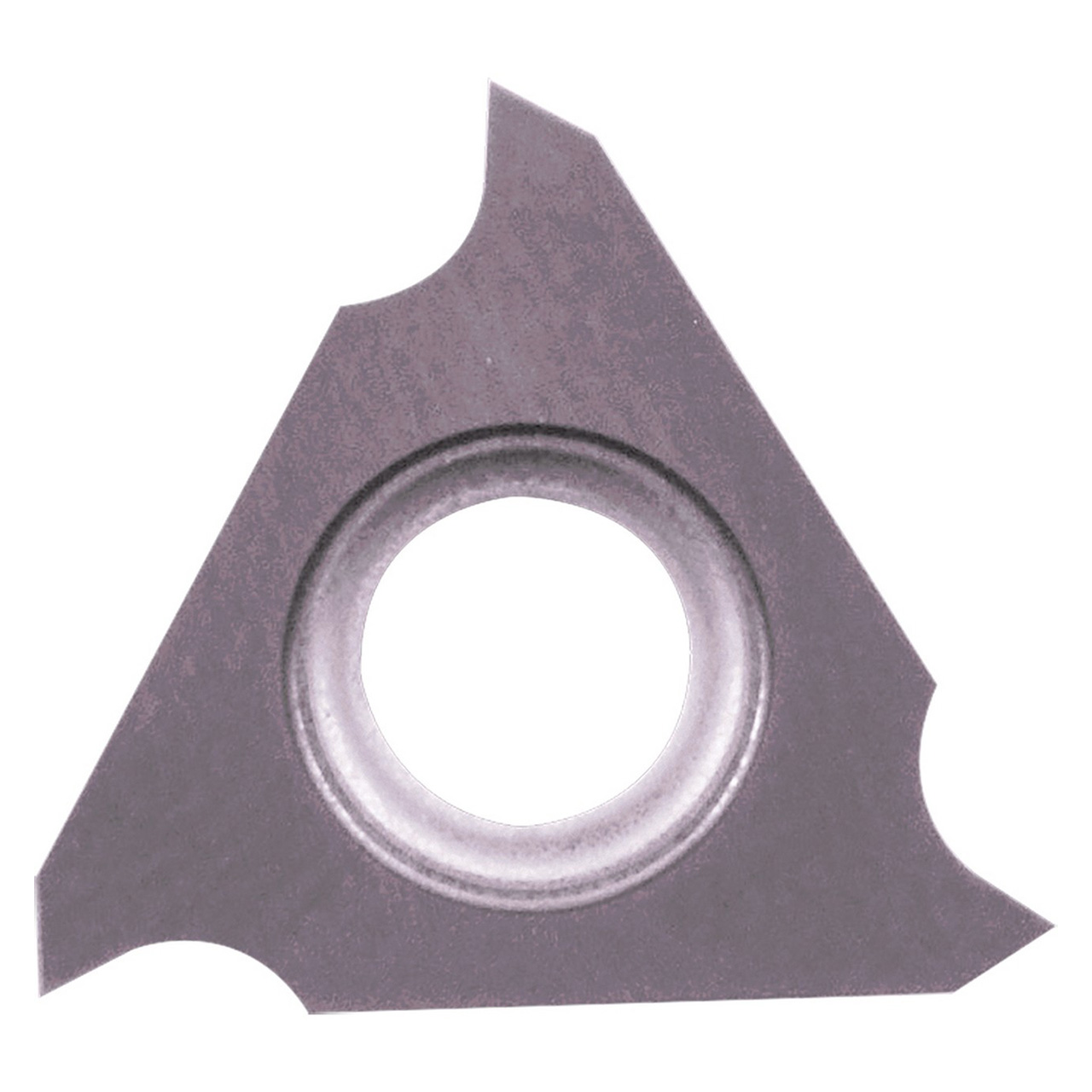

Kyocera Precision Tools TLC18726 | GBF32L050005 PR1535 0.0197" Cutting Width x 1/8" Thickness PVD Coated Carbide Grooving Insert

$21.39
Brand:
Kyocera Precision Tools
Insert Style:
GBF
Insert Size:
32
Material:
Carbide;Cutting Width (Decimal Inch)=0.0197"""
Cutting Width (mm):
0.50mm
Maximum Depth of Cut (Decimal Inch):
0.0472"
Maximum Depth of Cut (mm):
1.20mm
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD
SKU:
23242312
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
Tool NumberTLC18726
Max Depth of Cut (Decimal Inch)0.0472"
Max Depth of Cut (mm)1.20mm
Cutting Width (Decimal Inch)0.0197"
Cutting Width (mm)0.50mm
Cutting Width Minimum (Decimal Inch)0.0197"
Cutting Width Minimum (mm)0.50mm
Cutting Width Maximum (Decimal Inch)0.0197"
Cutting Width Maximum (mm)0.50mm
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)0.002"
Corner Radius (mm)0.05mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Grooving
Coating ProcessPVD
Cutting RangeMedium Roughing
HandLeft Hand
Insert Holding MethodScrew
Insert GradePR1535
Insert Size32
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialHeat-Resistant Alloy (S)
Usage ClassificationLight Interruption
