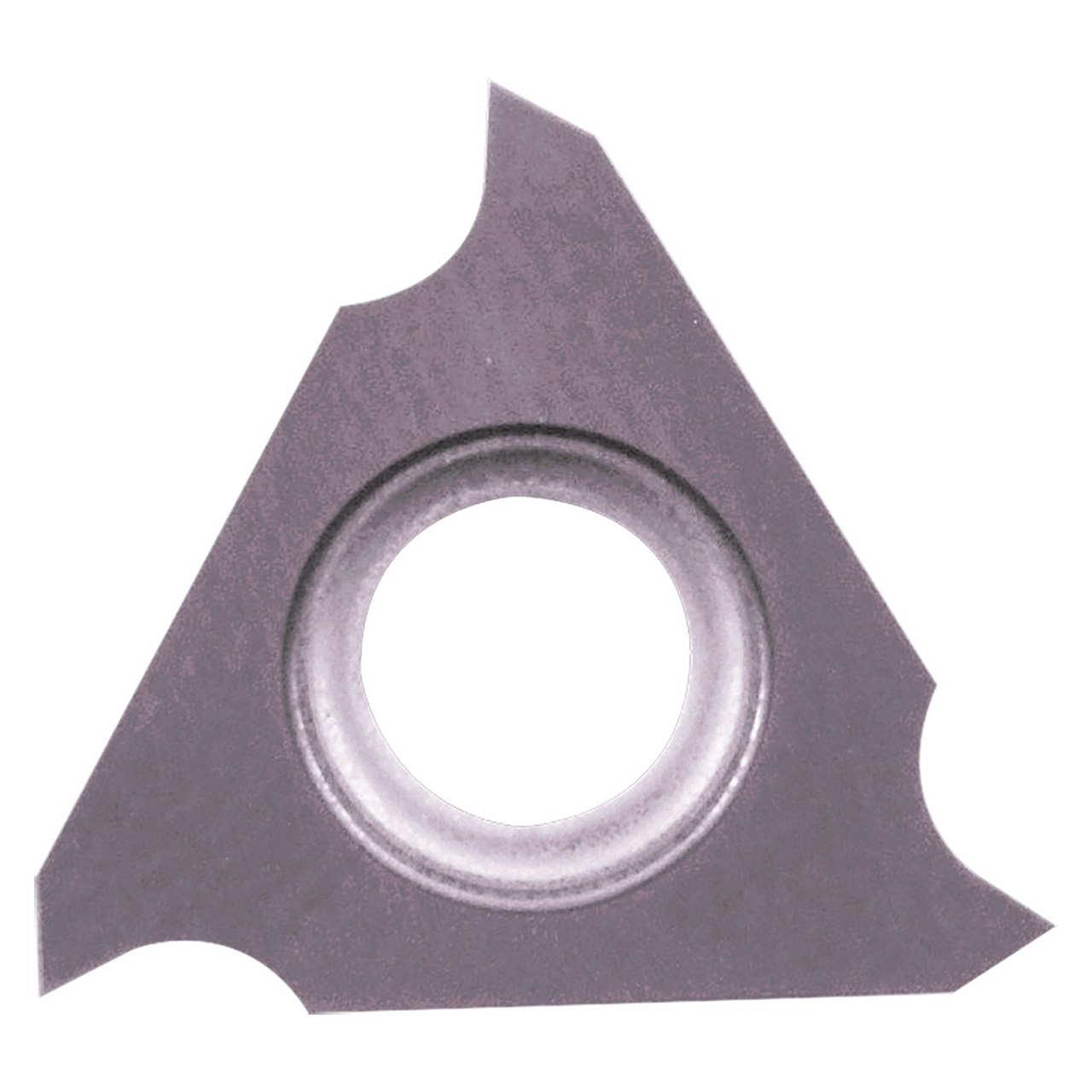

Kyocera Precision Tools TLC19905 | GBF32L033000F PR1535 0.0130" Cutting Width x 1/8" Thickness PVD Coated Carbide Grooving Insert

$21.39
Brand:
Kyocera Precision Tools
Insert Style:
GBF
Insert Size:
033
Material:
Carbide;Cutting Width (Decimal Inch)=0.0130"""
Cutting Width (mm):
0.33mm
Maximum Depth of Cut (Decimal Inch):
0.0315"
Maximum Depth of Cut (mm):
0.80mm
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD
SKU:
23242429
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for carbon/alloy steel and stainless steel

Product Specifications
Tool NumberTLC19905
Max Depth of Cut (Decimal Inch)0.0315"
Max Depth of Cut (mm)0.80mm
Cutting Width (Decimal Inch)0.0130"
Cutting Width (mm)0.33mm
Cutting Width Minimum (Decimal Inch)0.0130"
Cutting Width Minimum (mm)0.33mm
Cutting Width Maximum (Decimal Inch)0.0130"
Cutting Width Maximum (mm)0.33mm
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Grooving
ChipbreakerF
Coating ProcessPVD
Cutting RangeMedium Roughing
HandLeft Hand
Insert Holding MethodScrew
Insert GradePR1535
Insert Size033
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialHeat-Resistant Alloy (S)
Usage ClassificationLight Interruption
