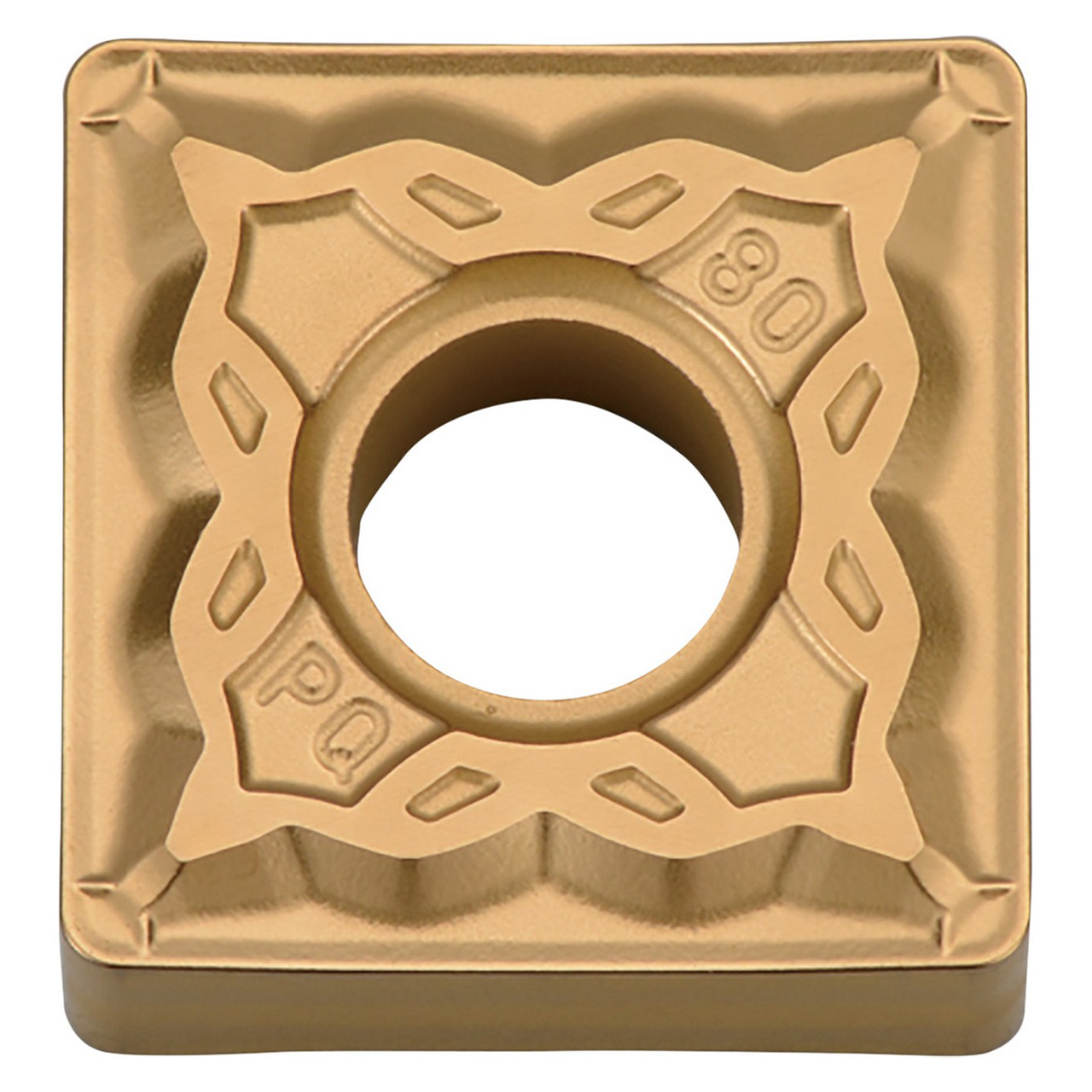

Features:
- Insert for external turning, facing, chamfering, boring
- 8 Cutting edges
- MEGACOAT NANO coating for efficient machining with high quality surface finishes with excellent wear and adhesion resistance
- Application: Recommended cermet for stable steel machining and high quality surface finish
Product Specifications
| EDP Number | TLD05272 |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Boring | Chamfering | External Turning | Facing |
| Chipbreaker | PQ |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | PV720 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 90 Degree Square |
| Insert Included Angle ( Degree) | 90 Degree |
| Insert Size | 431 |
| Material | Cermet |
| Number of Cutting Edges | 8 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
SNMG
Insert Size:
431
Material:
Cermet;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
PV720
interval quantity:
10
