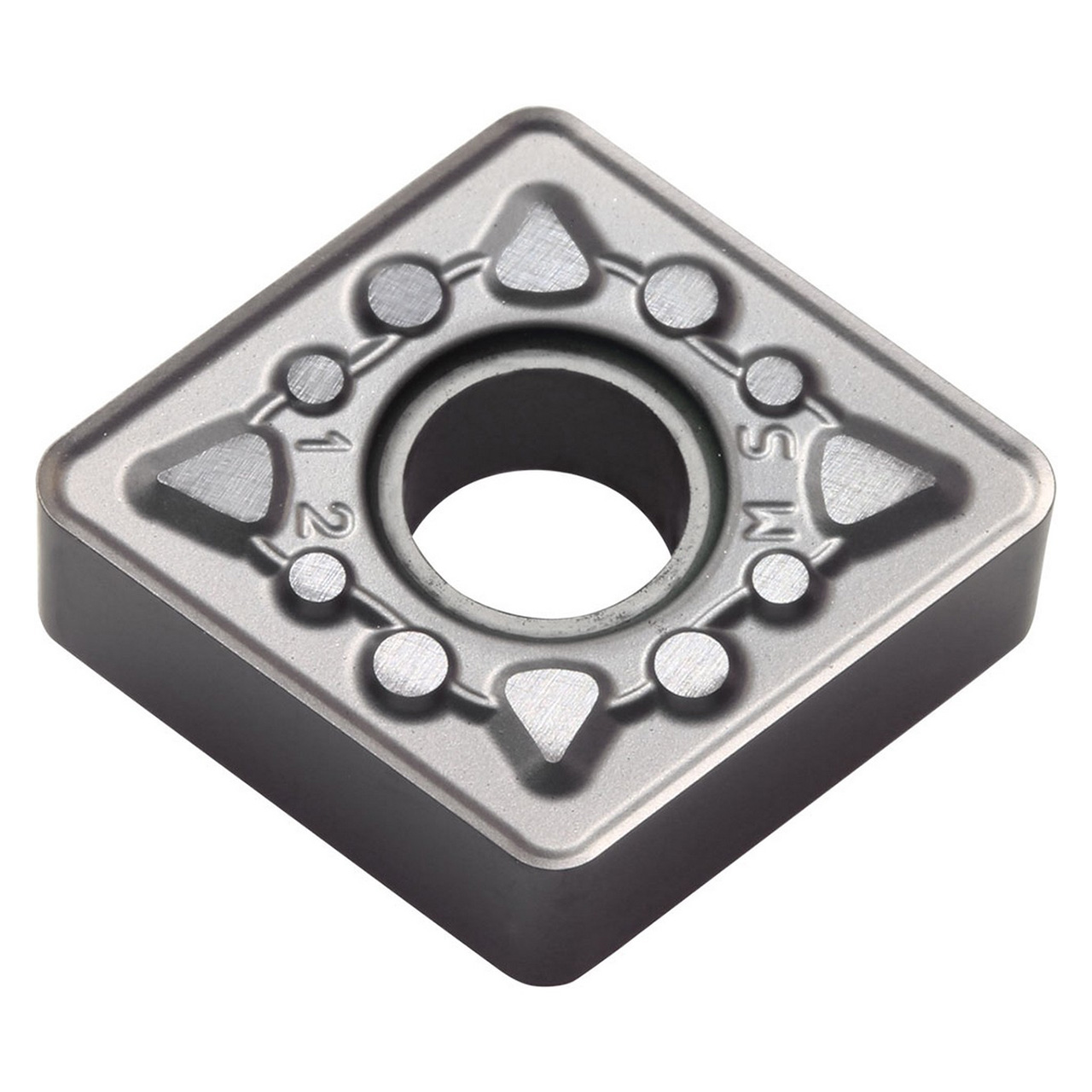

Features:
- Insert for external turning, facing, boring, internal facing
- Stainless steel/HRSA with 4 cutting edges
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
- Application: General purpose grade with excellent wear resistance and stability for continuous to light interrupted heat-resistant alloys
Product Specifications
| EDP Number | TLJ00922 |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (mm) | 0.80mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Boring | External Turning | Facing | Internal Facing |
| Chipbreaker | MS |
| Coating Process | PVD |
| Cutting Range | Medium Roughing |
| Hand | Neutral |
| Insert Grade | PR015S |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 432 |
| Material | Carbide |
| Number of Cutting Edges | 4 |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
CNMG
Insert Size:
432
Material:
Carbide;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
PR015S
