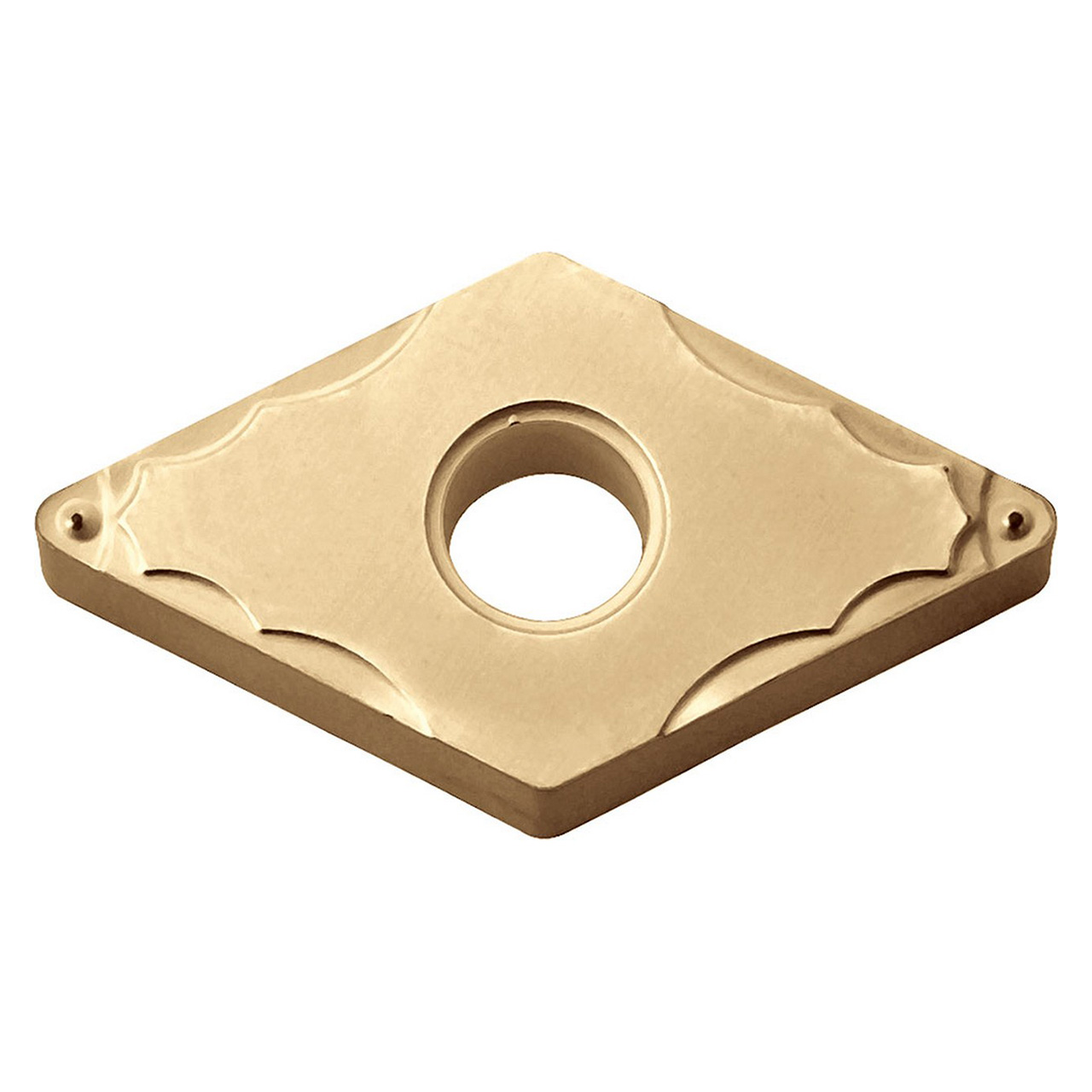

Kyocera Precision Tools TLP00197 | DNMG332GP PV730 3/8" Circle Diameter x 3/16" Thickness PVD Coated Cermet Indexable Turning Insert

$9.76
Brand:
Kyocera Precision Tools
Insert Style:
DNMG
Insert Size:
332
Material:
Cermet;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
PV730
SKU:
23246218
Weight:
0.11 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, copying, boring
  • 4 Cutting edges
  • Heavy interruption and finishing of (P) carbon/alloy steel

Product Specifications
EDP NumberTLP00197
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBoring | Copying | External Turning
ChipbreakerGP
Coating ProcessPVD
Cutting RangeFinishing
HandNeutral
Insert GradePV730
Insert Holding MethodScrew or Clamp
Insert Shape55 Degree Diamond
Insert Included Angle ( Degree)55 Degree
Insert Size332
MaterialCermet
Number of Cutting Edges4
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationHeavy Interruption
