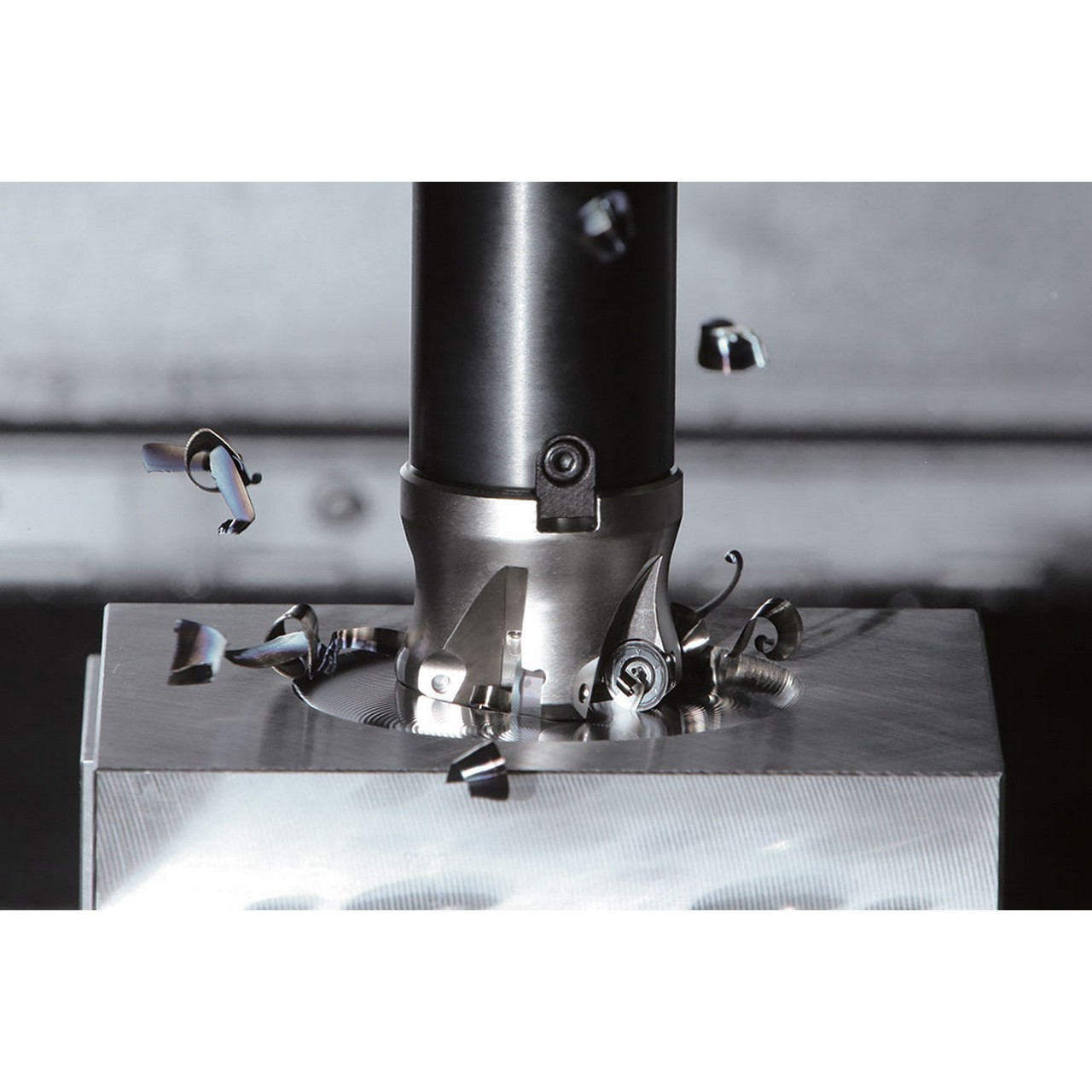

Kyocera Precision Tools TMA01650 | RPGT10T3M0ERGM CA6535 0.394" Circle Diameter x 5/32" Thickness CVD Coated Carbide Milling Insert

$9.58
Brand:
Kyocera Precision Tools
Insert Size:
10T3
Material:
Carbide;Finish/Coating=CVD
Inscribed Circle (Decimal Inch):
0.3900"
Inscribed Circle (mm):
10.00mm
Thickness (Decimal Inch):
0.1600"
Thickness (mm):
3.97mm
SKU:
23246666
Weight:
0.14 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for radius milling, facing, shouldering, grooving, pocketing, plunging
  • Honed edge/general purpose with high heat resistance and wear resistance with CVD coating with improved stability due to thin film coating
  • Application: CVD for Ni-base heat resistant alloy and martensitic stainless steel

Product Specifications
EDP NumberTMA01650
Inscribed Circle (Inch)0.394"
[IC] Inscribed Circle (mm)10.00mm
[S] Thickness (Inch)5/32"
[S] Thickness (mm)3.97mm
ApplicationFacing | Pocketing | Profiling | Ramping | Shouldering | Slotting
ChipbreakerM0ER-GM
Coating ProcessCVD
