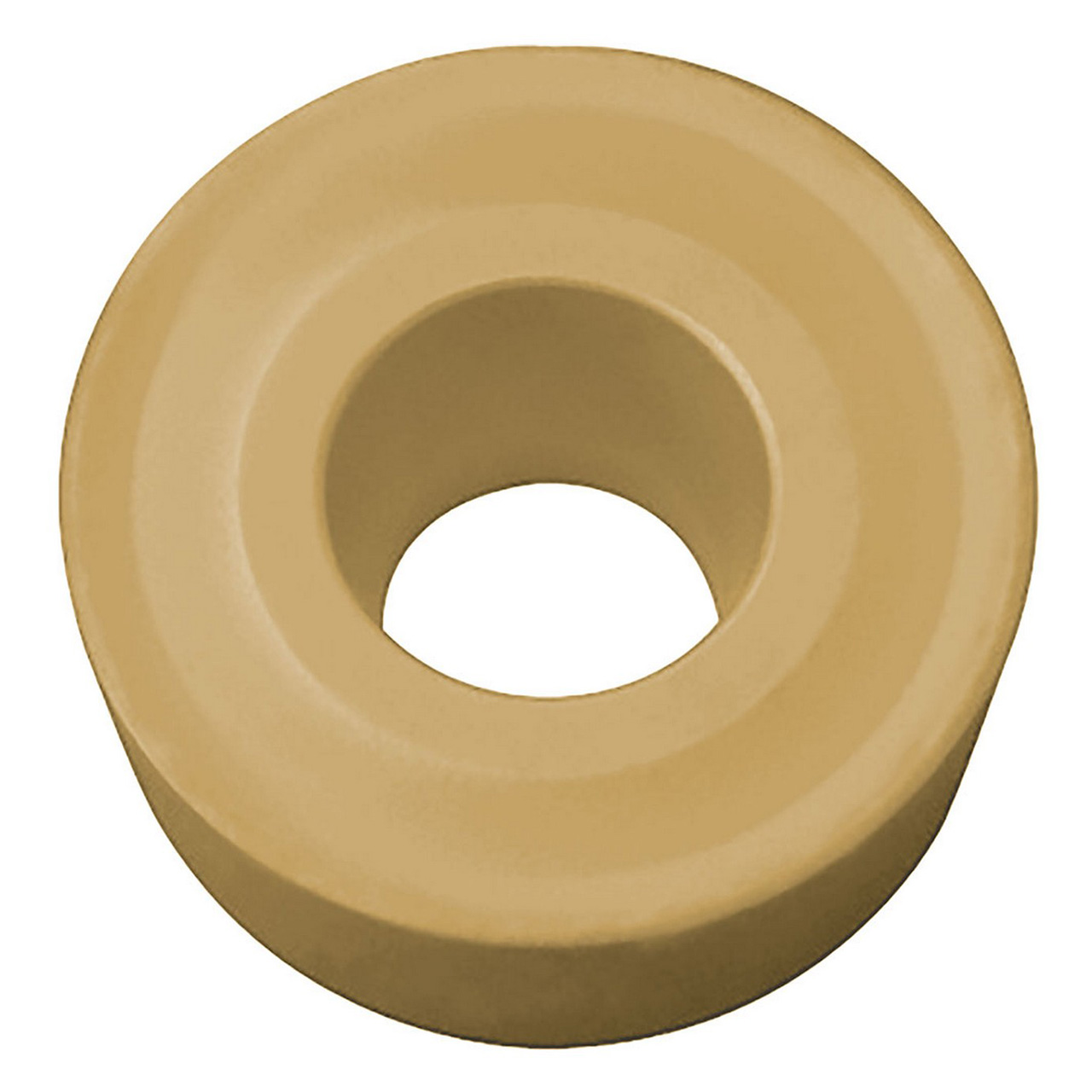

Kyocera Precision Tools TMH00446 | RCMX1003M0 CA025P 0.394" Circle Diameter x 1/8" Thickness CVD Coated Carbide Indexable Turning Insert

$9.40
Brand:
Kyocera Precision Tools
Insert Style:
RCMX
Insert Size:
1003
Material:
Carbide;Inscribed Circle (Decimal Inch)=0.3940"""
Inscribed Circle (mm):
10.00mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Manufacturer's Grade:
CA025P
SKU:
23247838
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, undercutting
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion.
  • Application: General to interrupted machining of steel

Product Specifications
EDP NumberTMH00446
Inscribed Circle (Inch)0.394"
Inscribed Circle (mm)10.00mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Turning | Facing | Undercutting
Coating ProcessCVD
Cutting RangeMedium
HandNeutral
Insert GradeCA025P
Insert Holding MethodScrew or Clamp
Insert ShapeRound
Insert Size1003
MaterialCarbide
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Style:
RCMX
Insert Size:
1003
Material:
Carbide;Inscribed Circle (Decimal Inch)=0.3940"""
Inscribed Circle (mm):
10.00mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Manufacturer's Grade:
CA025P
