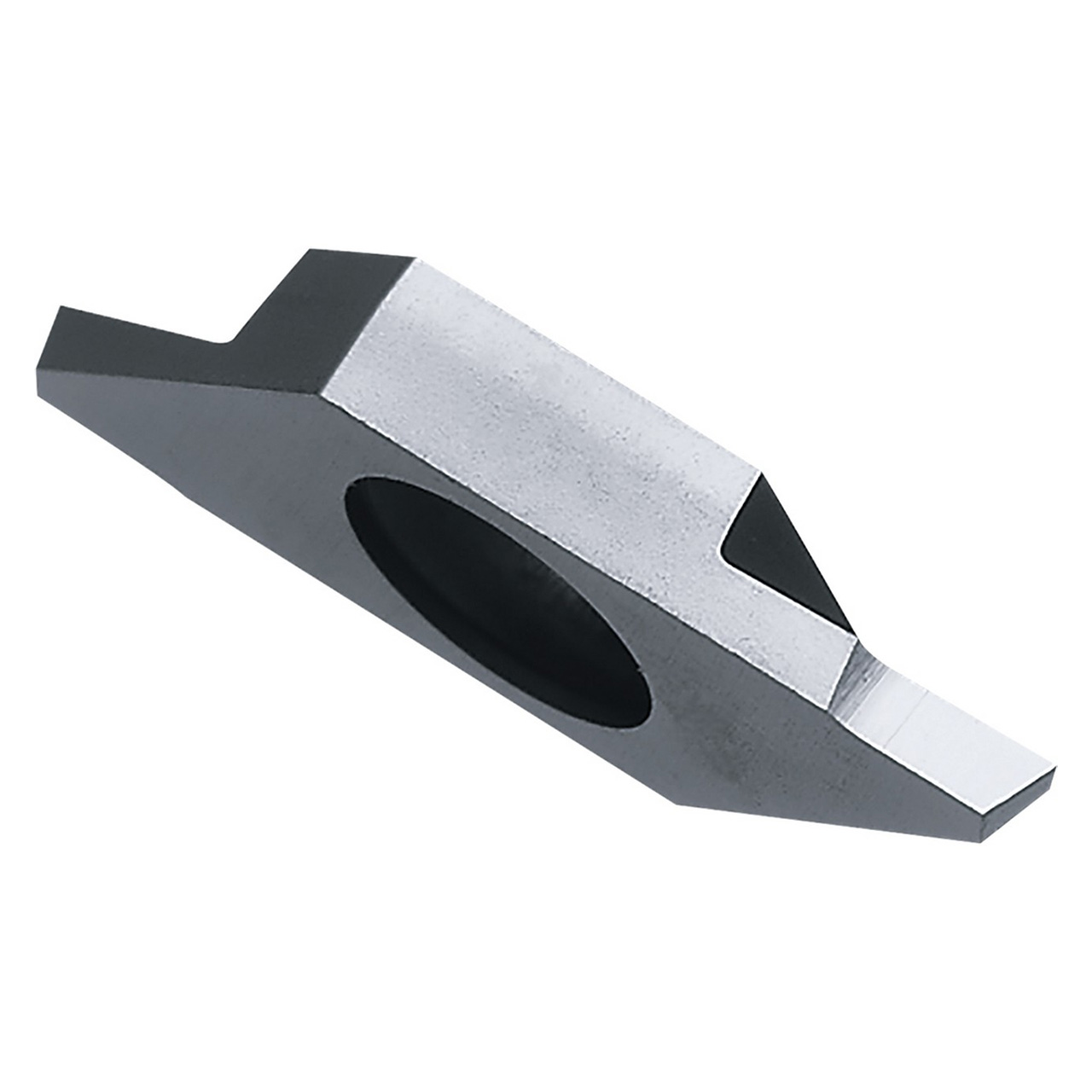

Features:
- Insert for Cut-Off for Small parts machining
- 20 Degree Right-Hand Lead Angle
- 2 Cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
| Tool Number | TWE16151 |
| Max Depth of Cut (Decimal Inch) | 0.0984" |
| Max Depth of Cut (mm) | 2.50mm |
| Cutting Width (Decimal Inch) | 0.0197" |
| Cutting Width (mm) | 0.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0197" |
| Cutting Width Minimum (mm) | 0.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0197" |
| Cutting Width Maximum (mm) | 0.50mm |
| Thickness (Inch) | 0.343" |
| Thickness (mm) | 8.70mm |
| Application | Cut-Off | Small Parts Machining |
| Chipbreaker | NB |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Insert Grade | KW10 |
| Insert Size | 12 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=TKF"
Insert Size:
12
Lead Angle Direction:
Left-Hand
Cutting Width (Decimal Inch):
0.0197"
Cutting Width (mm):
0.50mm
Manufacturer's Grade:
KW10
Series:
KTKF
interval quantity:
10
