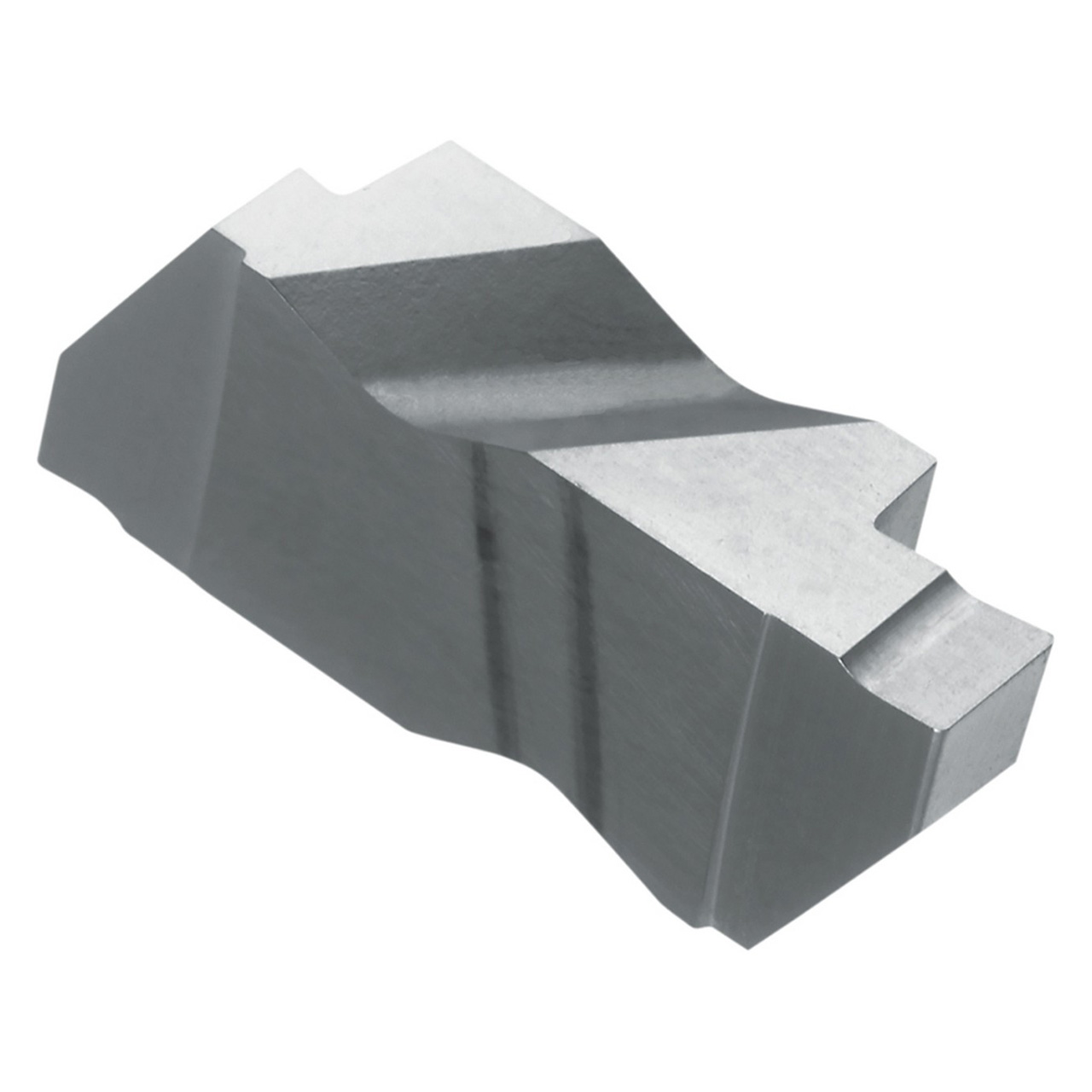

Features:
- Insert for external grooving, internal large diameter shallow grooving
- 2 Cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
| Tool Number | TWE89049 |
| Max Depth of Cut (Decimal Inch) | 0.0500" |
| Max Depth of Cut (mm) | 1.27mm |
| Cutting Width (Decimal Inch) | 0.0469" |
| Cutting Width (mm) | 1.19mm |
| Cutting Width Minimum (Decimal Inch) | 0.0469" |
| Cutting Width Minimum (mm) | 1.19mm |
| Cutting Width Maximum (Decimal Inch) | 0.0469" |
| Cutting Width Maximum (mm) | 1.19mm |
| Insert Length (Decimal Inch) | 0.5402" |
| Insert Length (mm) | 13.72mm |
| Corner Radius (Inch) | 0.003" |
| Corner Radius (mm) | 0.08mm |
| Thickness (Inch) | 7/32" |
| Thickness (mm) | 5.56mm |
| Application | External Grooving | Internal Large Diameter Shallow Grooving |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Grade | KW10 |
| Insert Size | 2047 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
KCGP
Insert Size:
2047
Material:
Carbide;Cutting Width (Decimal Inch)=0.0469"""
Cutting Width (mm):
1.19mm
Maximum Depth of Cut (Decimal Inch):
0.0500"
Maximum Depth of Cut (mm):
1.27mm
Manufacturer's Grade:
KW10
Finish/Coating:
Uncoated
