Features

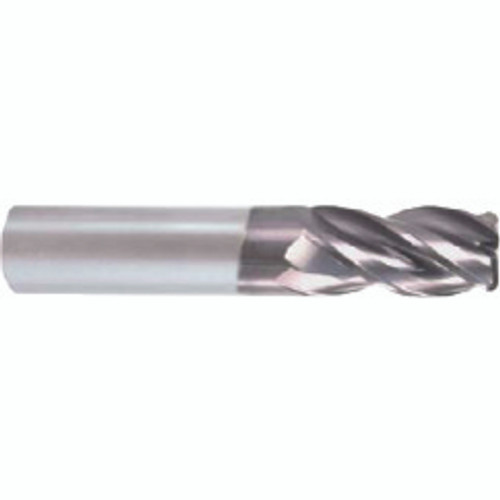

- 4 Flute TuffCut XR HP End Mill
- Corner Radius
- Center Cutting
- Variable Helix
- ALtima Coated
- Straight Shank
- Stub and Standard Lengths
- Designed for extreme productivity. Unique flute geometry reduces harmonics at increased feeds and speed.
Product Specifications
| Mill Diameter (Inch) | 1/2" |
| Mill Diameter (Decimal Inch) | 0.5000" |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Material | Carbide |
| Finish/Coating | ALtima |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Yes |
| Number of Flutes | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
M A Ford
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Material:
Carbide
Finish/Coating:
ALtima
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Number of Flutes:
4
Ships:
From Partner Facility
