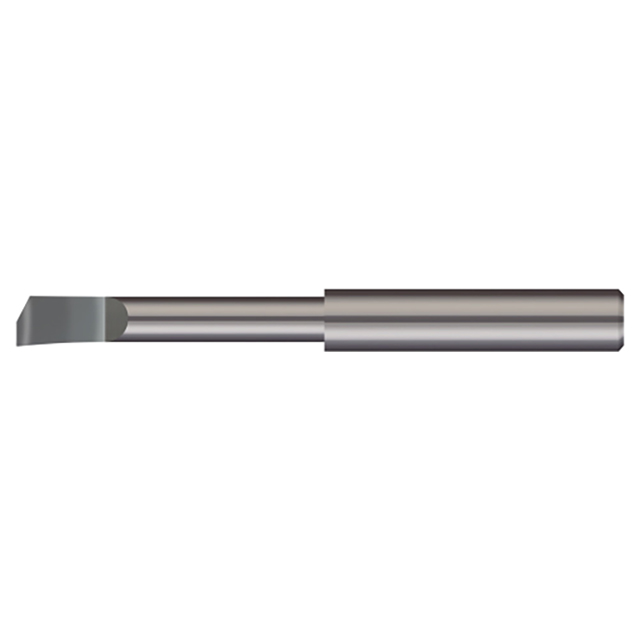

Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.3400" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 2" |
| Max Bore Depth (Decimal Inch) | 2.000" |
| Projection (Decimal Inch) | 0.0200" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Centerline Offset (Decimal Inch) | 0.1800" |
| Face Dimension (Inch) | 3/16" |
| Face Dimension (Decimal Inch) | 0.188" |
| Neck Diameter (Decimal Inch) | 0.3200" |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.00" |
| Split Length (Decimal Inch) | 0.720" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3400"
Maximum Bore Depth (Inch):
2"
Maximum Bore Depth (Decimal Inch):
2.000"
Material:
Carbide
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.00"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
IsDiscontinued:
