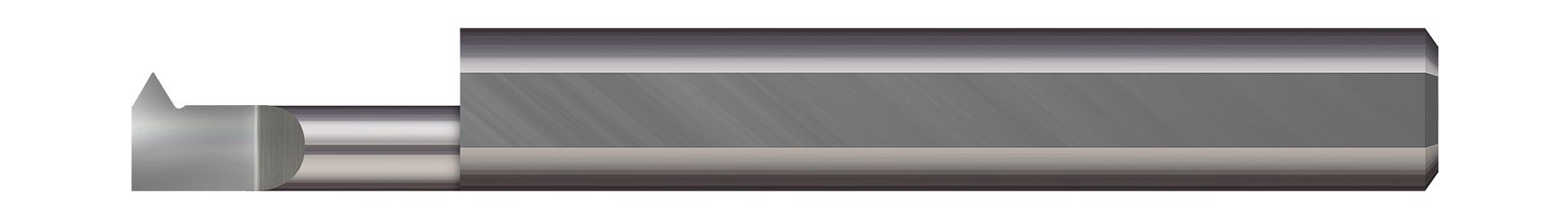

Micro 100 ITL-320500X | 0.3420" Minimum Bore Diameter x 1/2" Maximum Bore Depth x 0.0870" Flat x 3/8" Shank x 2-1/2" OAL AlTiN Coated Carbide Threading Tool

$78.15
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3420"
Head Width (Decimal Inch):
0.3200"
Finish/Coating:
AlTiN
Maximum Bore Depth (Inch):
1/2"
Maximum Bore Depth (Decimal Inch):
0.5000"
Projection (Decimal Inch):
0.0750"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Radius (Decimal Inch):
0.0020"
Included Angle:
60 Degree
Neck Diameter (Decimal Inch):
0.2400"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
interval quantity:
1
SKU:
15020667
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
ITL-320500X

Designed for threading multiple thread pitches (ANSI, UN, and Metric 60 Degree) in a left hand threading application, this left hand, single point threading tool features a corner radius profile for added strength.

  • Designed for threading mulitple thread pitches (ANSI, UN, and Metric 60 Degree) in a left hand threading application
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch)0.3420"
Hand DirectionLeft Hand
Finish/CoatingAlTiN
Max Bore Depth (Inch)0.500" (1/2)
Projection (Inch)0.0750"
Shank Diameter (Inch)0.3750" (3/8)
Centerline Offset (Inch)0.1325"
Offset (Inch)0.043"
Radius (Inch)0.0020"
Angle per Side30
Included Angle60
Face Dimension0.188" (3/16)
Neck Diameter (Inch)0.2400"
Overall Length (Inch)2.50" (2-1/2)
Split Length (Inch)0.210"
Thread Size10-32
Tooth Width (Inch)0.0870"
