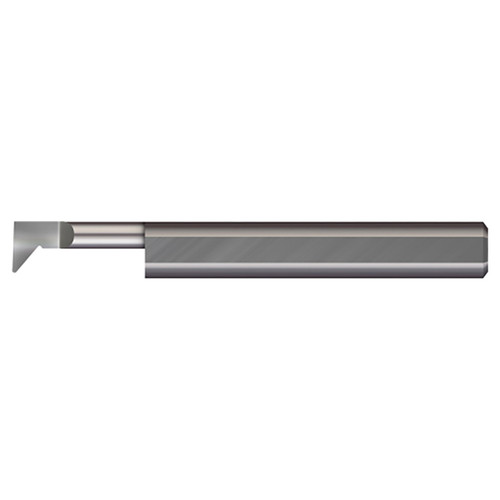

Micro 100 PR-070200 | 0.0700" Minimum Bore Diameter x 0.200" Maximum Bore Depth x 0.005" Radius x 1/8" Shank x 1.50" OAL Brazed Carbide Radial Profiling Tool

$28.70
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
PR
Type:
Turning
Cutting Direction:
Right Hand
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.50"
Minimum Bore Diameter (Decimal Inch):
0.0700"
Maximum Bore Depth (Decimal Inch):
0.200"
Finish/Coating:
Uncoated
Radius (Decimal Inch):
0.005"
Ships:
From Partner Facility
SKU:
25146363
UPC:
Weight:
0.11 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.0700"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Decimal Inch) 0.200"
Projection (Decimal Inch) 0.0250"
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Centerline Offset (Decimal Inch) 0.0075"
Corner Radius (Decimal Inch) 0.005"
Neck Diameter (Decimal Inch) 0.0450"
Overall Length (Inch) 1-1/2"
Overall Length (Decimal Inch) 1.50"
Tooth Width (Decimal Inch) 0.0210"
