Product Specifications
| Manufacturer Part Number | QIAT2-1000-14 |
| Minimum Bore Diameter (Decimal Inch) | 0.241" |
| Head Width (Decimal Inch) | 0.219" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.000" |
| Maximum Bore Depth (Inch) | 1" |
| Projection (Decimal Inch) | 0.070" |
| Shank Diameter (Decimal Inch) | 0.312" |
| Shank Diameter (Inch) | 5/16" |
| Centerline Offset | 0.0627" |
| Offset (Decimal Inch) | 0.043" |
| Flat Width (Decimal Inch) | 0.024" |
| Length from Holder (Decimal Inch) | 1.353" |
| Neck Diameter (Decimal Inch) | 0.149" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Thread Per Inch | 14 TPI |
| Coating | Uncoated |

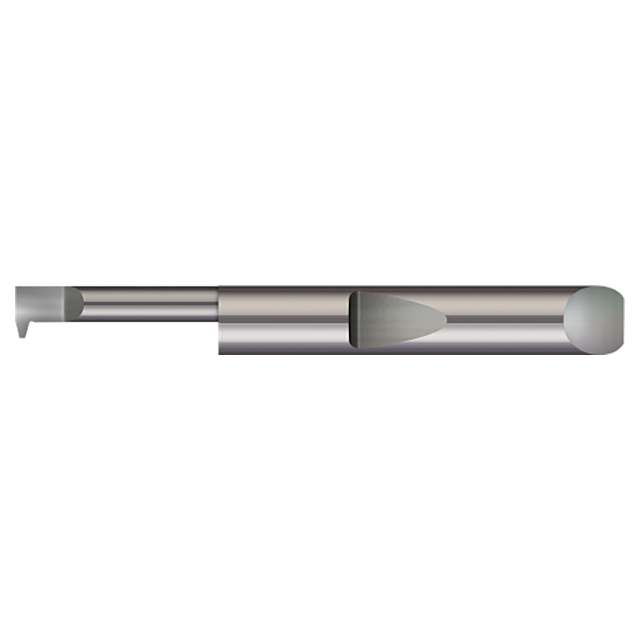

| Product Type | Quick Change Threading Tool - ACME Thread |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Inch):
20/83"
Minimum Bore Diameter (Decimal Inch):
0.2410"
Minimum Bore Diameter (mm):
6.12mm
Head Width (Inch):
7/32"
Head Width (Decimal Inch):
0.2190"
Head Width (mm):
5.56mm
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.0000"
Maximum Bore Depth (Inch):
25.40mm
Projection (Inch):
4/57"
Projection (Decimal Inch):
0.0700"
Projection (mm):
1.78mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3120"
Shank Diameter (mm):
7.92mm
Finish/Coating:
Uncoated
