Product Specifications
| Manufacturer Part Number | QITL-120250 |
| Minimum Bore Diameter (Decimal Inch) | 0.136" |
| Head Width (Decimal Inch) | 0.120" |
| Cutting Direction | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 0.250" |
| Maximum Bore Depth (Inch) | 1/4" |
| Projection (Decimal Inch) | 0.030" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Centerline Offset | 0.0262" |
| Offset (Decimal Inch) | 0.020" |
| Corner Radius (Decimal Inch) | 0.002" |
| Length from Holder (Decimal Inch) | 0.590" |
| Neck Diameter (Decimal Inch) | 0.090" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Thread Size | 20-56" |
| Thread Per Inch | 20-56 TPI |
| Coating | Uncoated |

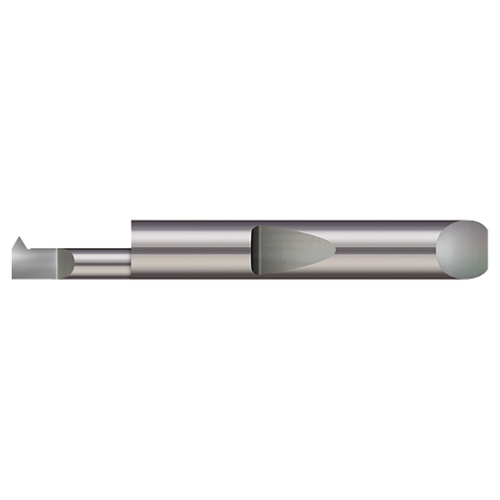

| Product Type | Quick Change Threading Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Inch):
3/22"
Minimum Bore Diameter (Decimal Inch):
0.1360"
Minimum Bore Diameter (mm):
3.45mm
Head Width (Inch):
3/25"
Head Width (Decimal Inch):
0.1200"
Head Width (mm):
3.05mm
Maximum Bore Depth (Inch):
1/4"
Maximum Bore Depth (Decimal Inch):
0.2500"
Maximum Bore Depth (Inch):
6.35mm
Projection (Inch):
2/67"
Projection (Decimal Inch):
0.0300"
Projection (mm):
0.76mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0020"
Corner Radius (mm):
0.05mm
Finish/Coating:
Uncoated
interval quantity:
1
