Product Specifications

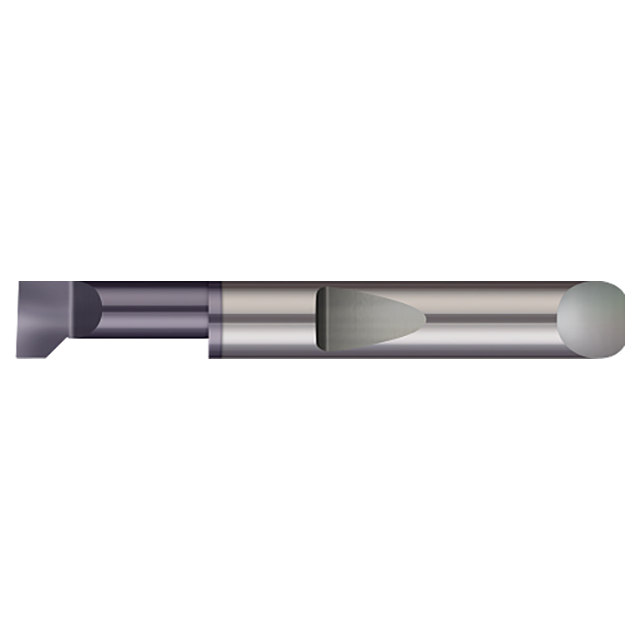

| Manufacturer Part Number | QLTR-156-6X |
| Minimum Bore Diameter (Decimal Inch) | 0.178" |
| Head Width (Decimal Inch) | 0.156" |
| Head Width (Inch) | 5/32" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.375" |
| Maximum Bore Depth (Inch) | 3/8" |
| Projection (Decimal Inch) | 0.040" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Centerline Offset | 0.0624" |
| Corner Radius (Decimal Inch) | 0.005" |
| Length from Holder (Decimal Inch) | 0.590" |
| Neck Diameter (Decimal Inch) | 0.116" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Tooth Width (Decimal Inch) | 0.063" |
| Coating | AlTiN |
| Product Type | Quick Change Threading Tool - Radius |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Inch):
13/73"
Minimum Bore Diameter (Decimal Inch):
0.1780"
Minimum Bore Diameter (mm):
4.52mm
Head Width (Inch):
5/32"
Head Width (Decimal Inch):
0.1560"
Head Width (mm):
3.96mm
Maximum Bore Depth (Inch):
3/8"
Maximum Bore Depth (Decimal Inch):
0.3750"
Maximum Bore Depth (Inch):
9.53mm
Projection (Inch):
1/25"
Projection (Decimal Inch):
0.0400"
Projection (mm):
1.02mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0050"
Corner Radius (mm):
0.13mm
Finish/Coating:
AlTiN
