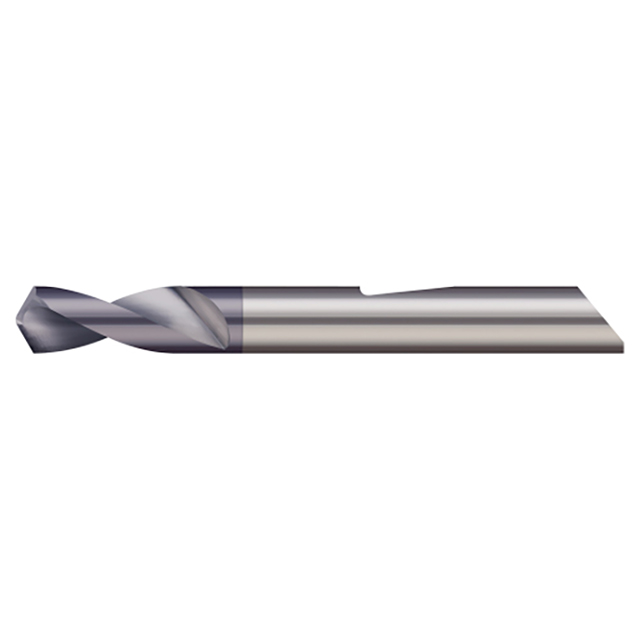

Product Specifications
| Drill Diameter (Decimal Inch) | 0.0200" |
| Finish/Coating | AlTiN |
| Number of Flutes | 2 |
| Max Bore Depth (Decimal Inch) | 1.315" |
| Flute Length (Decimal Inch) | 0.060" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Radius (Decimal Inch) | 0.0390" |
| Length from Holder (Decimal Inch) | 0.590" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.50" |
| Point Angle | 90 Degree |
| Type | I |
| Web Thickness (Decimal Inch) | 0.002" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Body Diameter (Decimal Inch):
0.0200"
Drill Point Angle:
90°
Material:
Carbide
Finish/Coating:
AlTiN
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.50"
Ships:
From Partner Facility
IsDiscontinued:
