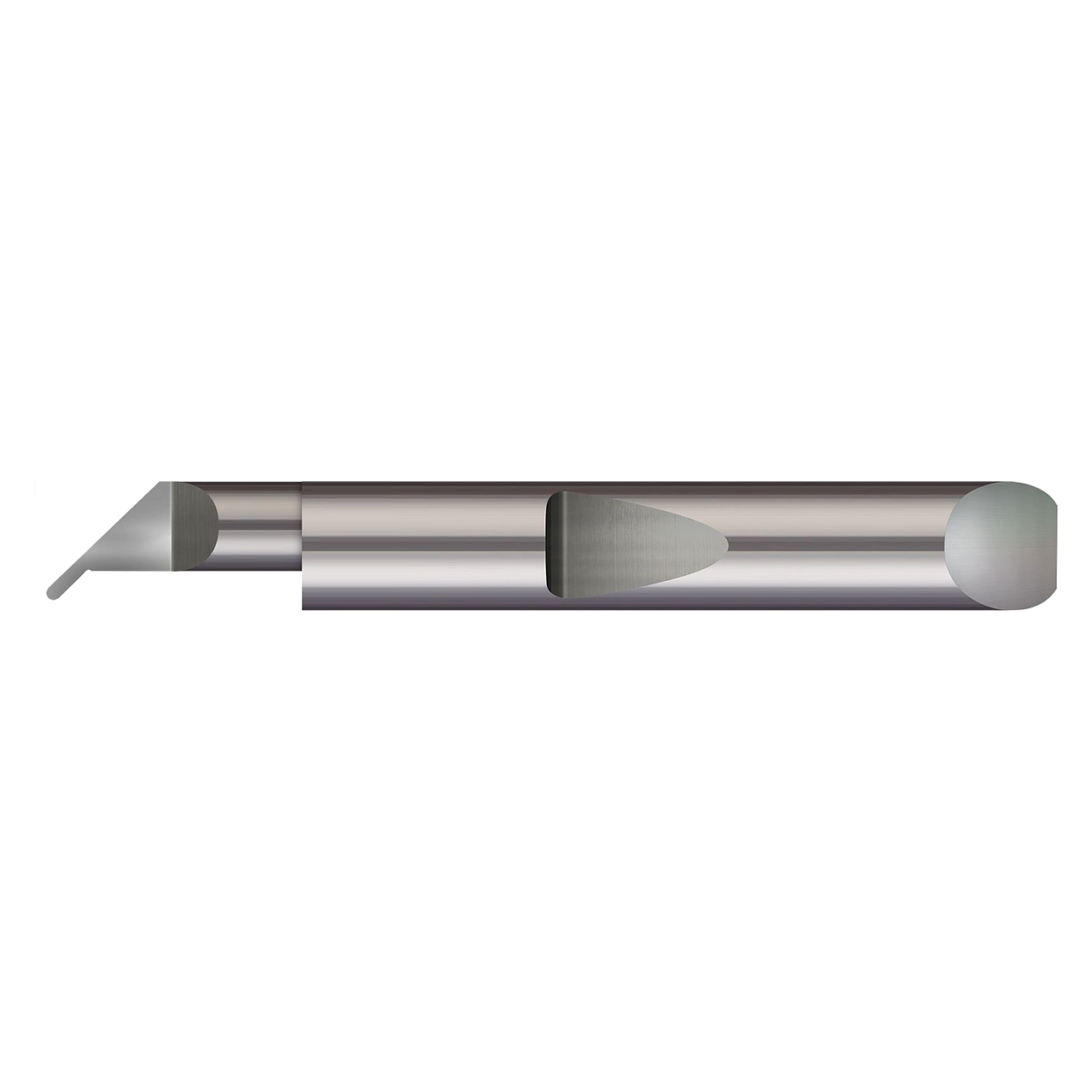

Product Specifications
| Manufacturer Part Number | QUP-31050-16 |
| Minimum Bore Diameter (Decimal Inch) | 0.3250" |
| Maximum Bore Diameter (Decimal Inch) | 1.000" |
| Maximum Bore Diameter (Inch) | 1" |
| Projection (Decimal Inch) | 0.0830" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Projection (Decimal Inch) | 5/16" |
| Shank Diameter(mm) | 0.1467" |
| Radius (Decimal Inch) | 0.0250" |
| Angled Projection (Inch) | 0.132" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 1.353" |
| Neck Diameter (Decimal Inch) | 0.2200" |
| Overall Length (Decimal Inch) | 2.50" |
| Overall Length (Inch) | 2-1/2" |
| Tooth Width (Decimal Inch) | 0.0500" |
| Coating | Uncoated |
| Product Type | Grooving Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Projection (Inch):
5/64"
Projection (Decimal Inch):
0.0830"
Projection (mm):
2.11mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Finish/Coating:
Uncoated
