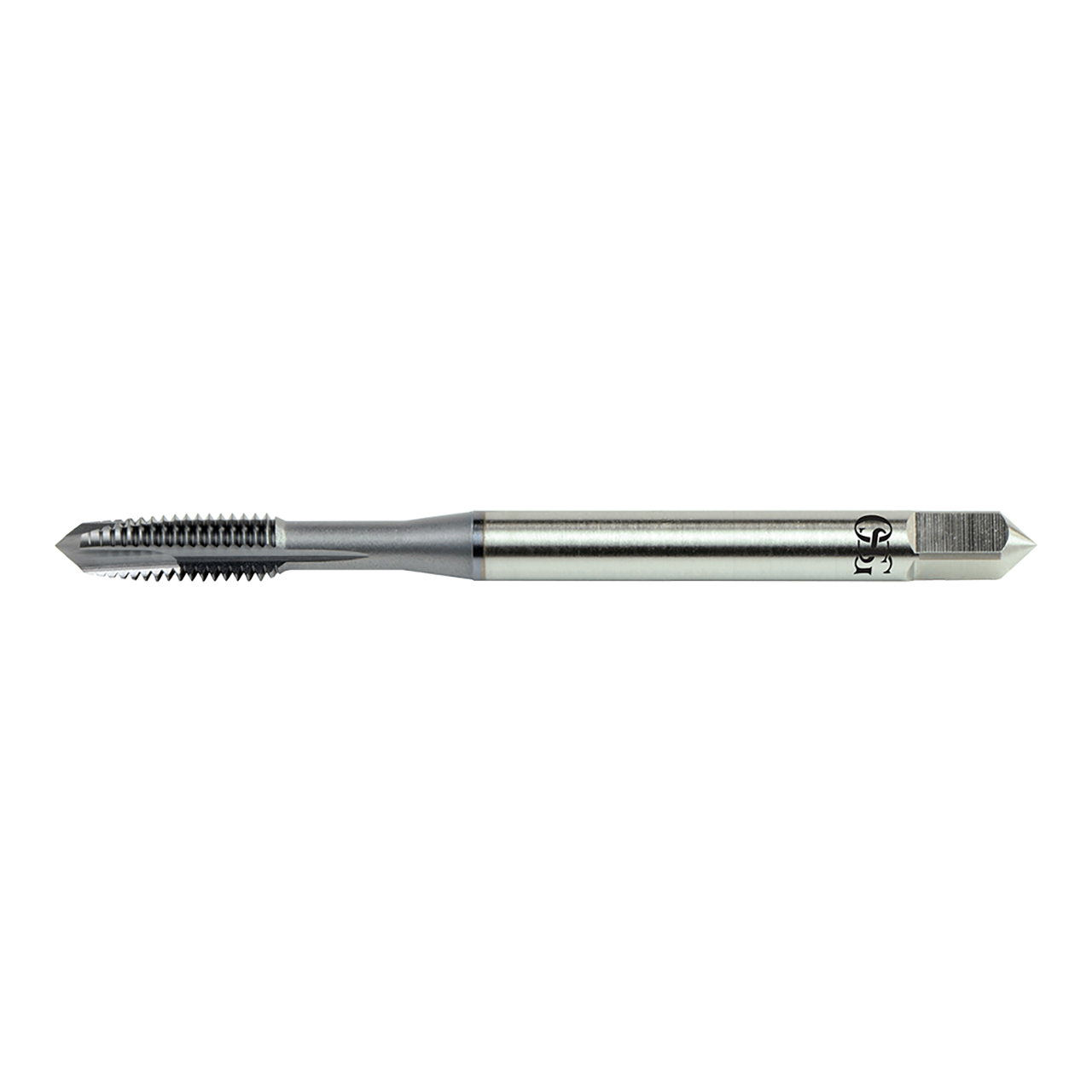

HY-PRO AL DIN is a premium spiral point Tap designed for Alloy and Cast Aluminums.
Features & Benefits:
- HSSE Material: Increased Wear Resistance
- Spiral Point: For through Hole Applications
- Nitride Surface Treatment: Extra Surface Hardness for longer life
- DIN Overall Length: Provides additional Reach Capability
Product Specifications
| Manufacturer Part Number | 1101600203 |
| Chamfer Length (Decimal Inch) | 0.100" |
| Chamfer Type | Plug (4P) |
| Cutting Direction | Right Hand |
| List Name | AL-DIN-POT |
| Major Diameter (Decimal Inch) | 0.112" |
| Neck Length (Decimal Inch) | 0.705" |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 2.201" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Square Length (Decimal Inch) | 0.188" |
| Square Width (Decimal Inch) | 0.110" |
| Material | HSSE |
| Coating | Nitride |
| Tap Drill Size Maximum (Decimal Inch) | 0.094" |
| Tap Drill Size Minimum (Decimal Inch) | 0.085" |
| Thread Length (Decimal Inch) | 0.295" |
| Thread Limit | H2 |
| Thread Size (Number) | 4 |
| Thread Type | UNC |
| Thread Per Inch (TPI) | 40 TPI |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Chamfer Length (Decimal Inch):
0.1000"
Cutting Direction:
Right Hand
Neck Length (Decimal Inch):
0.7050"
Number of Flutes:
2
Overall Length (Decimal Inch):
2.2010"
Shank Diameter (Decimal Inch):
0.1410"
Square Length (Decimal Inch):
0.1880"
Material:
HSSE
Finish/Coating:
Nitride
Thread Length (Decimal Inch):
0.2950"
Thread Limit:
H2
Thread Type:
UNC
Thread Per Inch:
40 TPI
