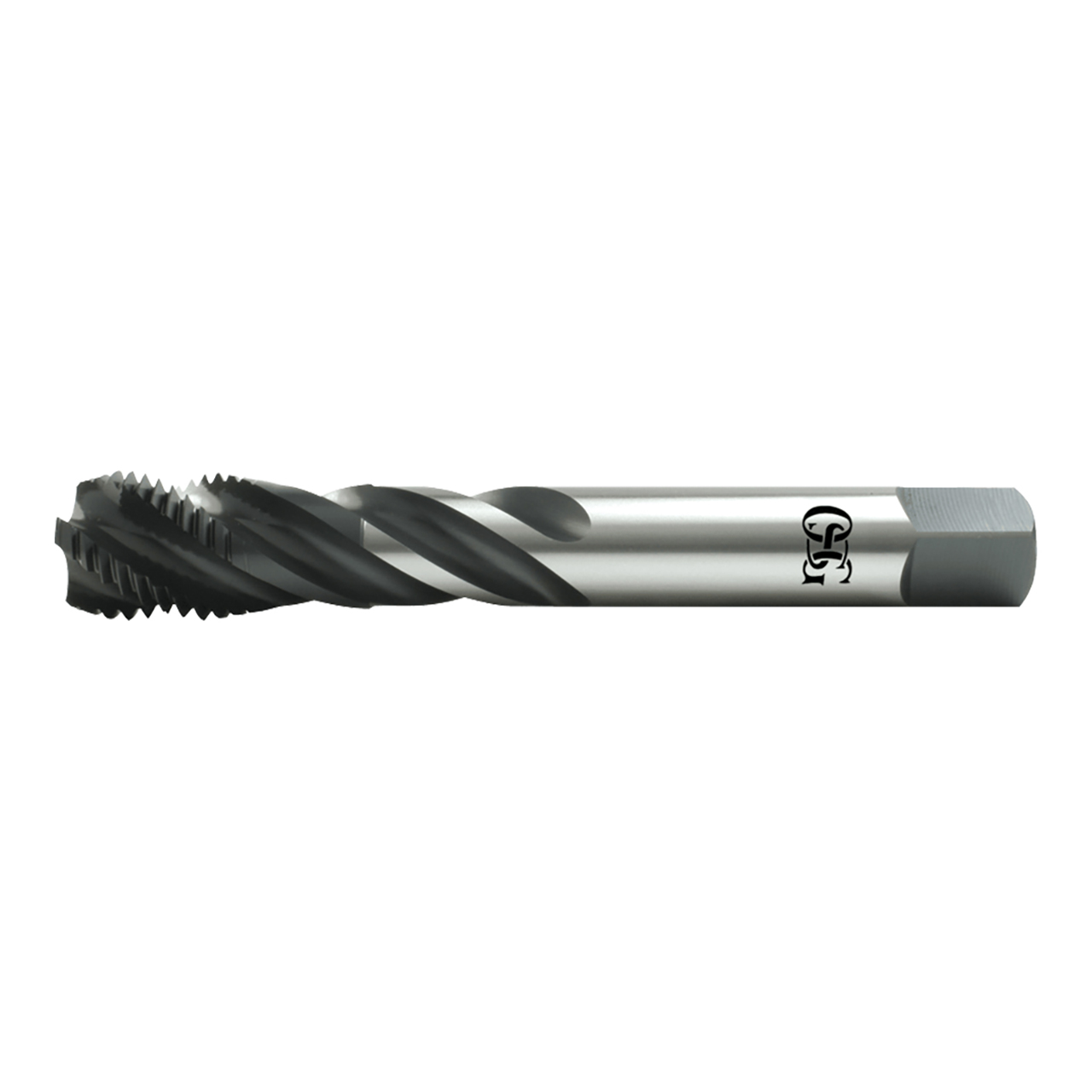

HY-PRO VXL-W Taps Vertical Tapping Solutions for the Wind Energy Industry
Product Specifications
| Manufacturer Part Number | 1311701701 |
| Chamfer Length (Decimal Inch) | 0.295" |
| Major Diameter (mm) | 24.00mm |
| Number of Flutes | 5 |
| Overall Length (mm) | 160.00mm |
| Pitch (mm) | 3.00mm |
| Shank Diameter (mm) | 19.30mm |
| Square Length (mm) | 19.05mm |
| Square Width (mm) | 14.48mm |
| Maximum Tap Drill Size (mm) | 21.25mm |
| Minimum Tap Drill Size (mm) | 20.75mm |
| Thread Length (mm) | 24.00mm |
| Thread Size | M24 |
| Coating | Steam Oxide |
| Material | HSSE |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (mm):
160.00mm
Shank Diameter (mm):
19.30mm
Helix Angle:
45 Degree
Number of Flutes:
5
Material:
HSSE
Finish/Coating:
Steam Oxide
Cutting Direction:
Right Hand
Square Length (mm):
19.05mm
Pitch (mm):
3.00mm
Thread Length (mm):
24.00mm
Chamfer Length (Decimal Inch):
0.2950"
