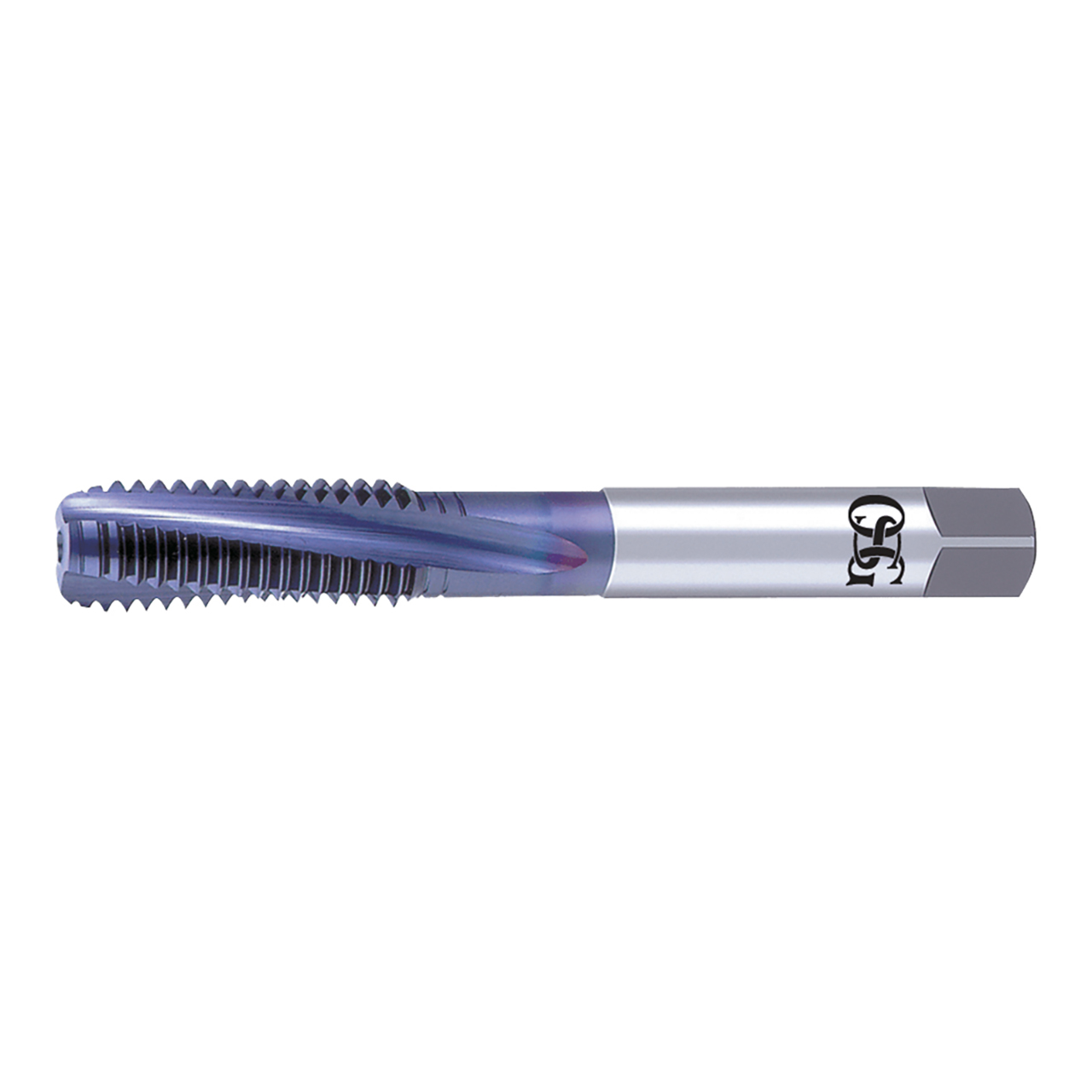

EXOTap VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.
Features & Benefits:
- Premium Powdered Metal VC-10 Substrate: Increased Hardness for longer life
- Spiral Flute: For through Hole Applications
- OSG V-Coating: Increased Hardness, Lubricity & Wear Resistance
- DIN Overall Length: Provides greater Reach Capability
Product Specifications
| Manufacturer Part Number | 1316210608 |
| Chamfer Length (Decimal Inch) | 0.123" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 10 Degree |
| Helix Direction | Right Hand |
| List Name | VC-10 V-Ti-SFT |
| Major Diameter (mm) | 10.00mm |
| Neck Length (mm) | 31.80mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 74.60mm |
| Pitch (mm) | 1.25mm |
| Shank Diameter (mm) | 9.68mm |
| Square Length (mm) | 11.11mm |
| Square Width (mm) | 7.26mm |
| Material | VC-10 |
| Coating | V |
| Tap Drill Size Maximum (mm) | 8.91mm |
| Tap Drill Size Minimum (mm) | 8.65mm |
| Thread Length (mm) | 12.00mm |
| Thread Limit | D5 |
| Thread Size | M10 |
| Thread Type | MF |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Chamfer Length (Decimal Inch):
0.1230"
Cutting Direction:
Right Hand
Helix Angle:
10 Degree
Neck Length (mm):
31.80mm
Number of Flutes:
3
Overall Length (mm):
74.60mm
Pitch (mm):
1.25mm
Shank Diameter (mm):
9.68mm
Square Length (mm):
11.11mm
Material:
VC-10
Finish/Coating:
V
Thread Length (mm):
12.00mm
Thread Limit:
D5
Thread Size:
M10
Thread Type:
MF
