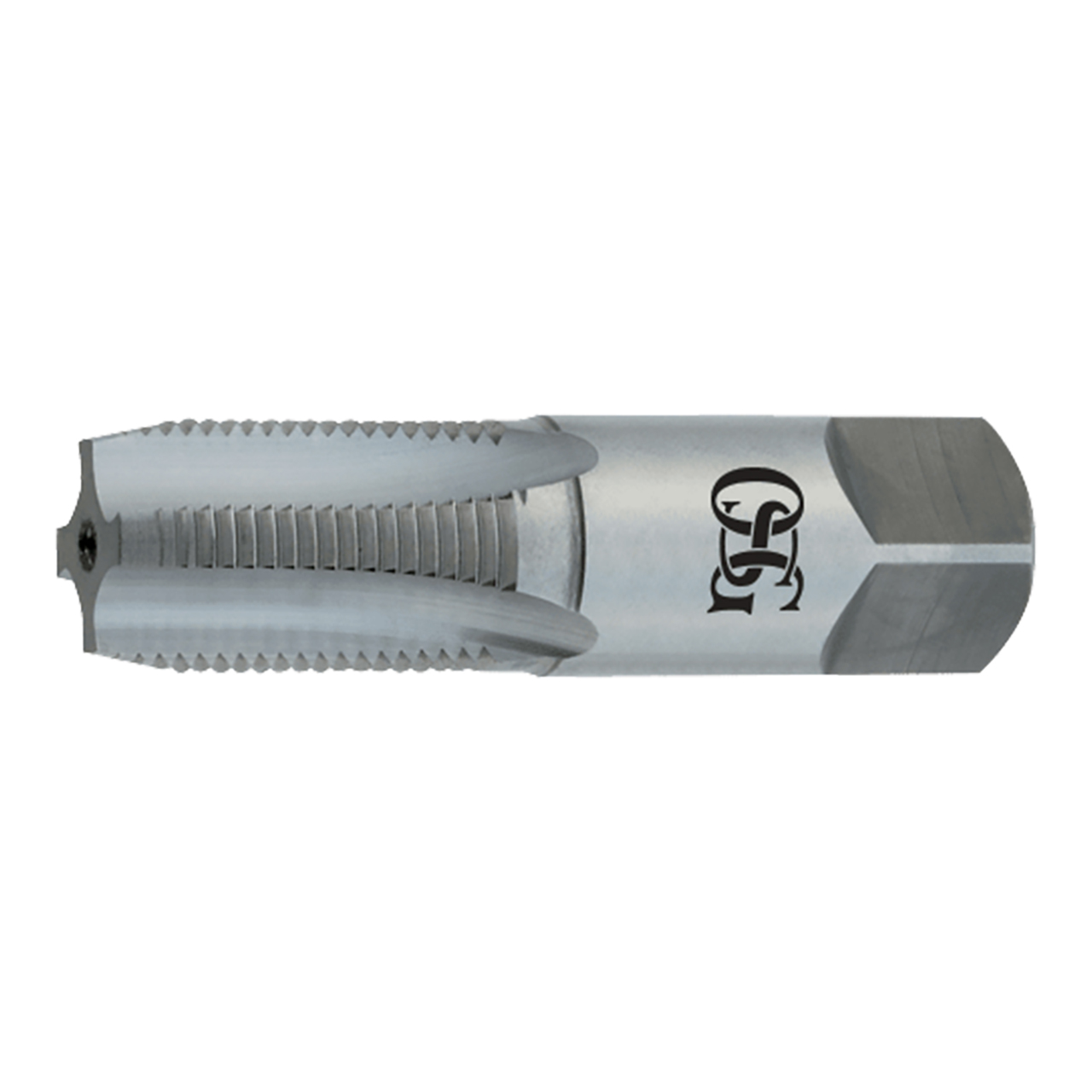

General Purpose parallel thread pipe taps provide exceptional value.
Features & Benefits:
- HSS material: Increased wear resistance
- Bright or Steam Oxide surface treatment: S/O increases mechanical lubricity
- NPS & NPSF: For standard and dry seal straight pipe thread applications
Product Specifications
| Manufacturer Part Number | 1333001 |
| Cutting Direction | Right Hand |
| List Name | GENERAL PURPOSE-NPS/NPSF |
| Major Diameter (Decimal Inch) | 0.500" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 3.126" |
| Shank Diameter (Decimal Inch) | 0.688" |
| Square Length (Decimal Inch) | 0.625" |
| Square Width (Decimal Inch) | 0.515" |
| Material | HSS |
| Coating | Steam Oxide |
| Tap Drill Size Minimum (Decimal Inch) | 0.719" |
| Thread Length (Decimal Inch) | 1.374" |
| Thread Size (Inch) | 1/2" |
| Thread Type | NPSF |
| Thread Per Inch (TPI) | 14 TPI |
| Product Type | Standard Pipe Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Cutting Direction:
Right Hand
Number of Flutes:
4
Overall Length (Decimal Inch):
3.1260"
Shank Diameter (Decimal Inch):
0.6880"
Square Length (Decimal Inch):
0.6250"
Material:
HSS
Finish/Coating:
Steam Oxide
Thread Length (Decimal Inch):
1.3740"
Thread Size (Inch):
1/2"
Thread Type:
NPSF
Thread Per Inch:
14 TPI
