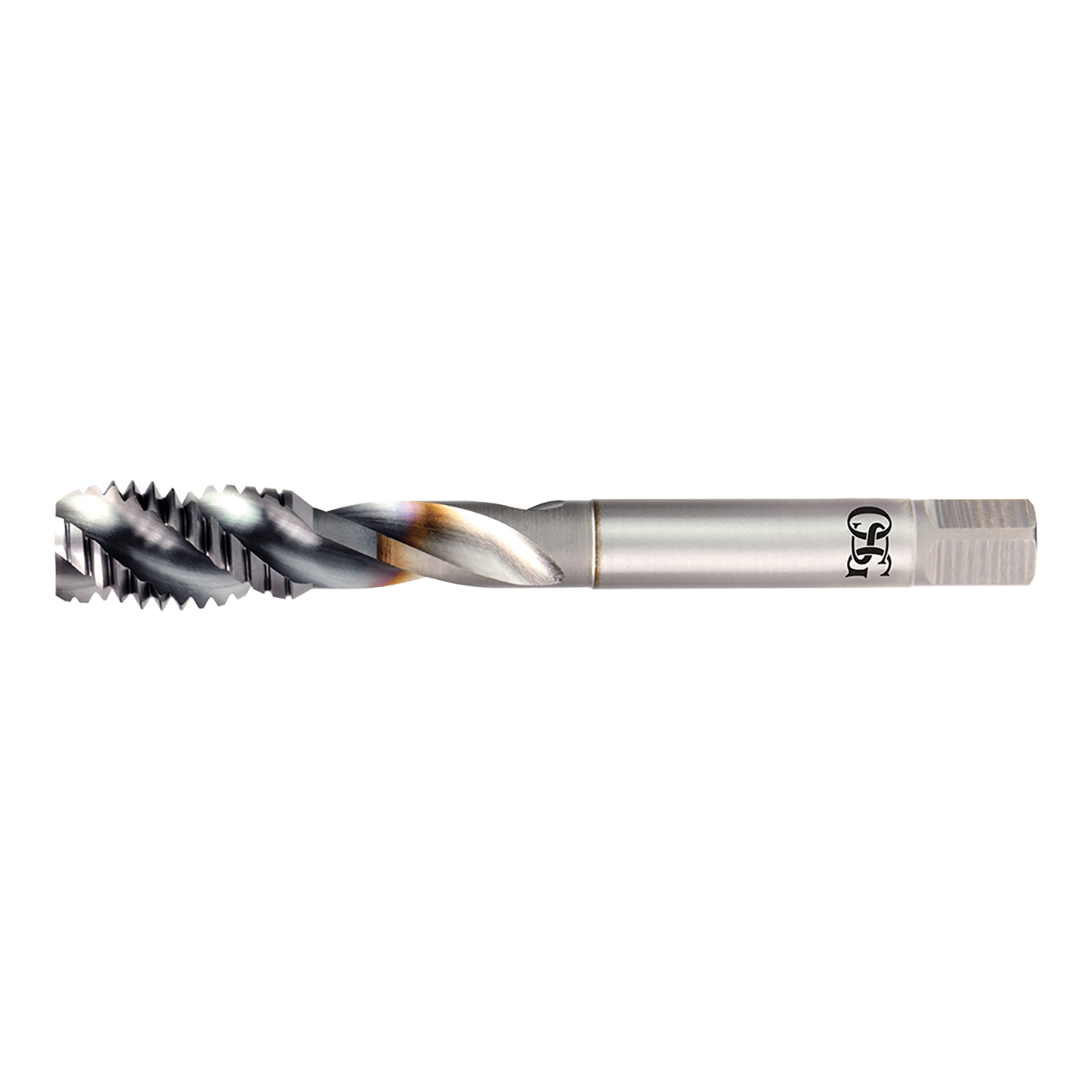

The A Brand A-Tap is an all-purpose tap series designed to simplify tool management and to excel in a wide variety of materials and applications. The A Brand A-Tap is made from powdered metal HSS and has OSG's patented V coating to achieve excellent wear resistance. The spiral flute series has adopted a variable helix flute design, which encourages stable chip evacuation and reduces cutting forces. The spiral point series has unique geometry that enables greater chip control that can help produce tightly compacted chips for easy ejection from the hole.
Features & Benefits:
Sharp Cutting Edge
- Stabilizes Chip Shape
Variable Helix Flute
- Accelerates chip evacuation
OSG's Proprietary V Coating
- Long tool life
Powder Metallurgy HSS
- High Wear Resistance
| Manufacturer Part Number | 1650006108 |
| Chamfer Length (Decimal Inch) | 0.098" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | A-SFT |
| Major Diameter (mm) | 16.00mm |
| Neck Length (mm) | 54.00mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 100.00mm |
| Pitch (mm) | 1.00mm |
| Shank Diameter (mm) | 12.19mm |
| Square Length (mm) | 14.29mm |
| Square Width (mm) | 9.14mm |
| Material | VC-10 |
| Coating | V |
| Tap Drill Size Maximum (mm) | 15.15mm |
| Tap Drill Size Minimum (mm) | 14.92mm |
| Thread Length (mm) | 12.00mm |
| Thread Limit | D5 |
| Thread Size | M16 |
| Thread Type | MF |
| Product Type | Spiral Flute Tap |
