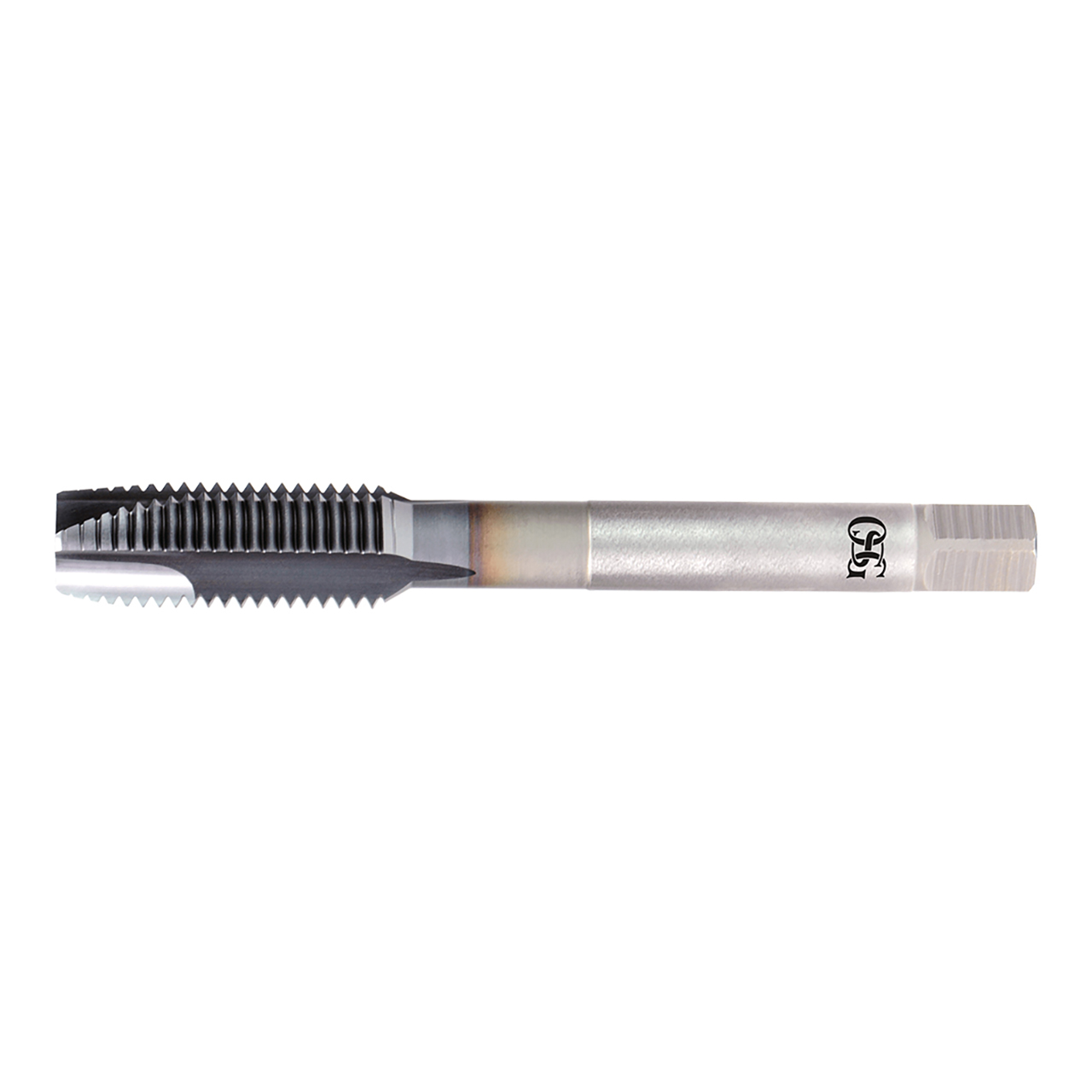

The A Brand A-Tap is an all-purpose Tap series designed to simplify tool management and to excel in a wide variety of Materials and Applications. The A-Tap is made from powdered metal HSS and has OSG's patented V coating to achieve excellent Wear Resistance. The spiral point series has unique geometry that enables greater chip control that can help produce tightly compacted chips for easy ejection from the Hole. The spiral flute series has adopted a variable helix flute design, which encourages stable chip evacuation and reduces Cutting forces.
Features & Benefits:
- Sharp Cutting Edge: Stabilizes Chip Shape
- OSG's Proprietary V Coating: Long tool life
- Powder Metallurgy HSS: High Wear Resistance
| Manufacturer Part Number | 1651003008 |
| Chamfer Length (Decimal Inch) | 0.047" |
| Major Diameter (mm) | 1.40mm |
| Neck Length (mm) | 8.90mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 40.00mm |
| Pitch (mm) | 0.30mm |
| Shank Diameter (mm) | 3.58mm |
| Square Length (mm) | 4.76mm |
| Square Width (mm) | 2.79mm |
| Maximum Tap Drill Size (mm) | 1.26mm |
| Minimum Tap Drill Size (mm) | 1.18mm |
| Thread Length (mm) | 7.90mm |
| Thread Size | M1.4 |
| Coating | V |
| Material | VC-10 |
| Product Type | Spiral Point Tap |
