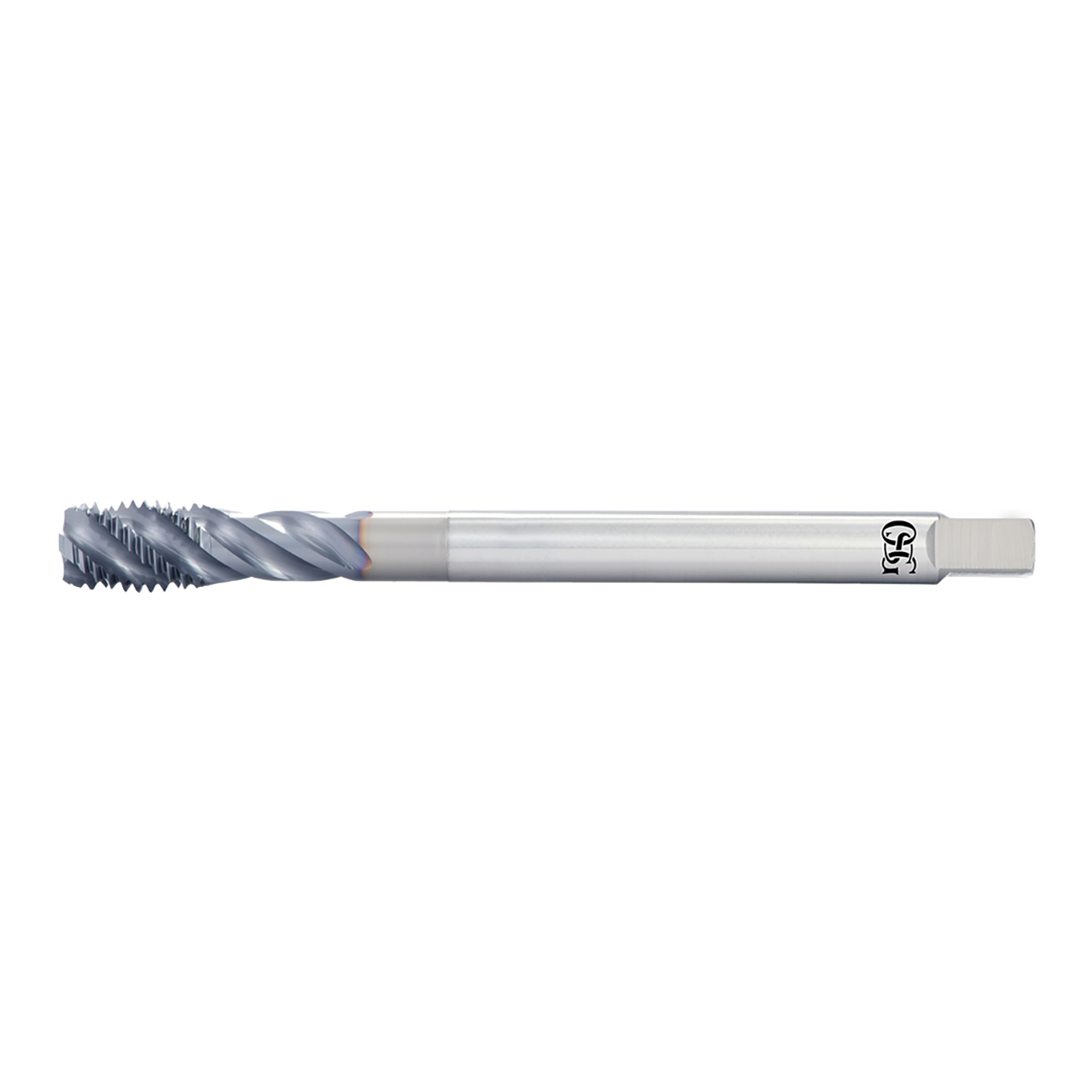

Features & Benefits:
- Sharp Cutting Edge: Stabilizes Chip Shape
- Variable Helix Flute: Accelerates chip evacuation
- OSG's Proprietary V Coating: Long tool life
- Powder Metallurgy HSS: High Wear Resistance
Product Specifications
| Manufacturer Part Number | 1652003308 |
| Chamfer Length (Decimal Inch) | 0.074" |
| Major Diameter (mm) | 8.00mm |
| Neck Length (mm) | 33.00mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 150.00mm |
| Pitch (mm) | 0.75mm |
| Shank Diameter (mm) | 8.08mm |
| Square Length (mm) | 9.53mm |
| Square Width (mm) | 6.05mm |
| Maximum Tap Drill Size (mm) | 7.38mm |
| Minimum Tap Drill Size (mm) | 7.19mm |
| Thread Length (mm) | 8.00mm |
| Thread Size | M8 |
| Coating | V |
| Material | VC-10 |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (mm):
150.00mm
Shank Diameter (mm):
8.08mm
Helix Angle:
45 Degree
Number of Flutes:
3
Material:
VC-10
Finish/Coating:
V
Cutting Direction:
Right Hand
Neck Length (mm):
33.00mm
Square Length (mm):
9.53mm
Pitch (mm):
0.75mm
Thread Length (mm):
8.00mm
Chamfer Length (Decimal Inch):
0.0740"
