Features & Benefits:
- Sharp Cutting Edge: Stabilizes Chip Shape
- Variable Helix Flute: Accelerates chip evacuation
- OSG's Proprietary V Coating: Long tool life
- Powder Metallurgy HSS: High Wear Resistance
Product Specifications
| Manufacturer Part Number | 1654001608 |
| Chamfer Length (Decimal Inch) | 0.148" |
| Major Diameter (mm) | 14.00mm |
| Neck Length (mm) | 50.10mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 100.00mm |
| Pitch (mm) | 1.50mm |
| Shank Diameter (mm) | 10.90mm |
| Square Length (mm) | 12.70mm |
| Square Width (mm) | 8.18mm |
| Maximum Tap Drill Size (mm) | 12.68mm |
| Minimum Tap Drill Size (mm) | 12.38mm |
| Thread Length (mm) | 16.00mm |
| Thread Size | M14 |
| Coating | V |
| Material | VC-10 |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |

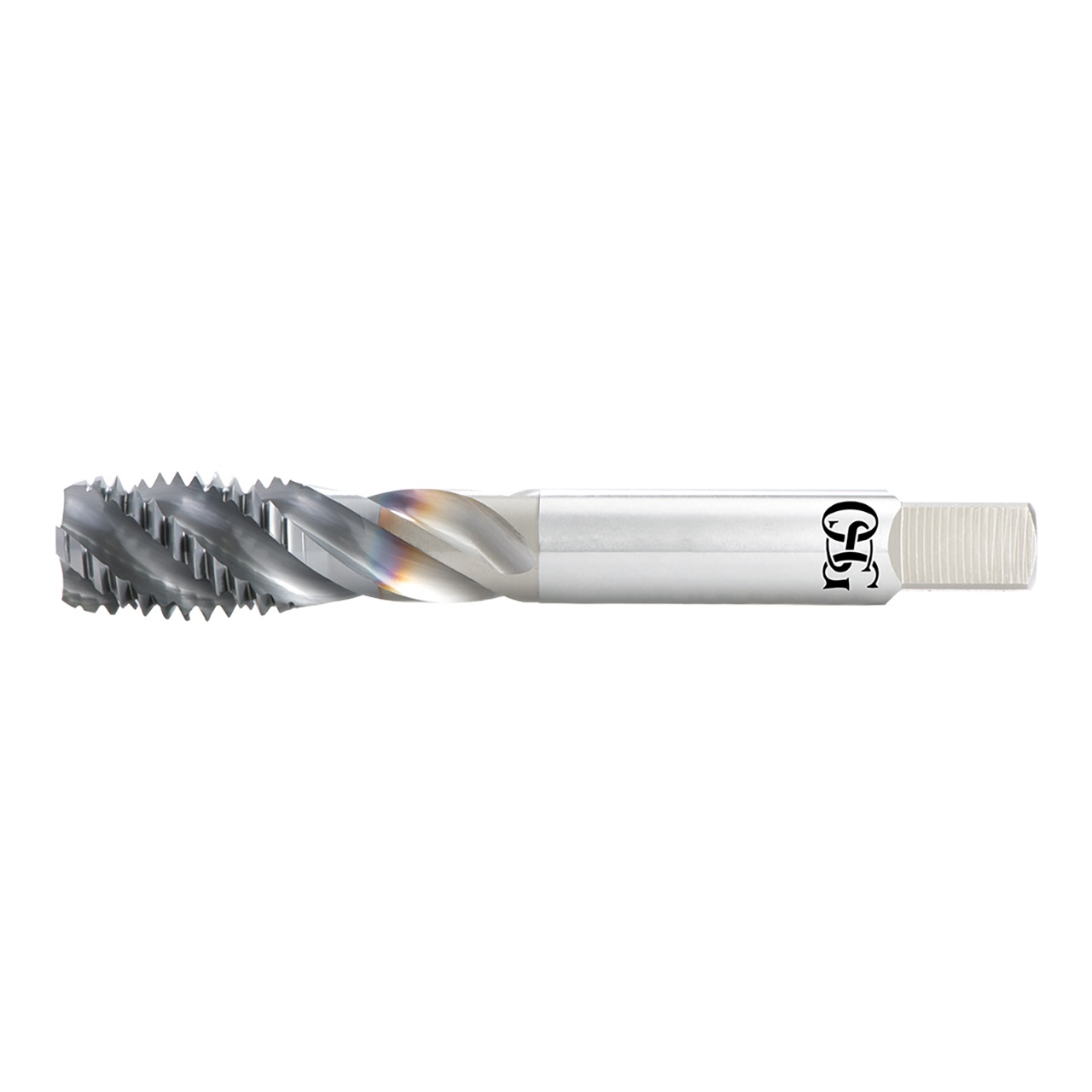

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (mm):
100.00mm
Shank Diameter (mm):
10.90mm
Helix Angle:
45 Degree
Number of Flutes:
3
Material:
VC-10
Finish/Coating:
V
Cutting Direction:
Right Hand
Neck Length (mm):
50.10mm
Square Length (mm):
12.70mm
Pitch (mm):
1.50mm
Thread Length (mm):
16.00mm
Chamfer Length (Decimal Inch):
0.1480"
