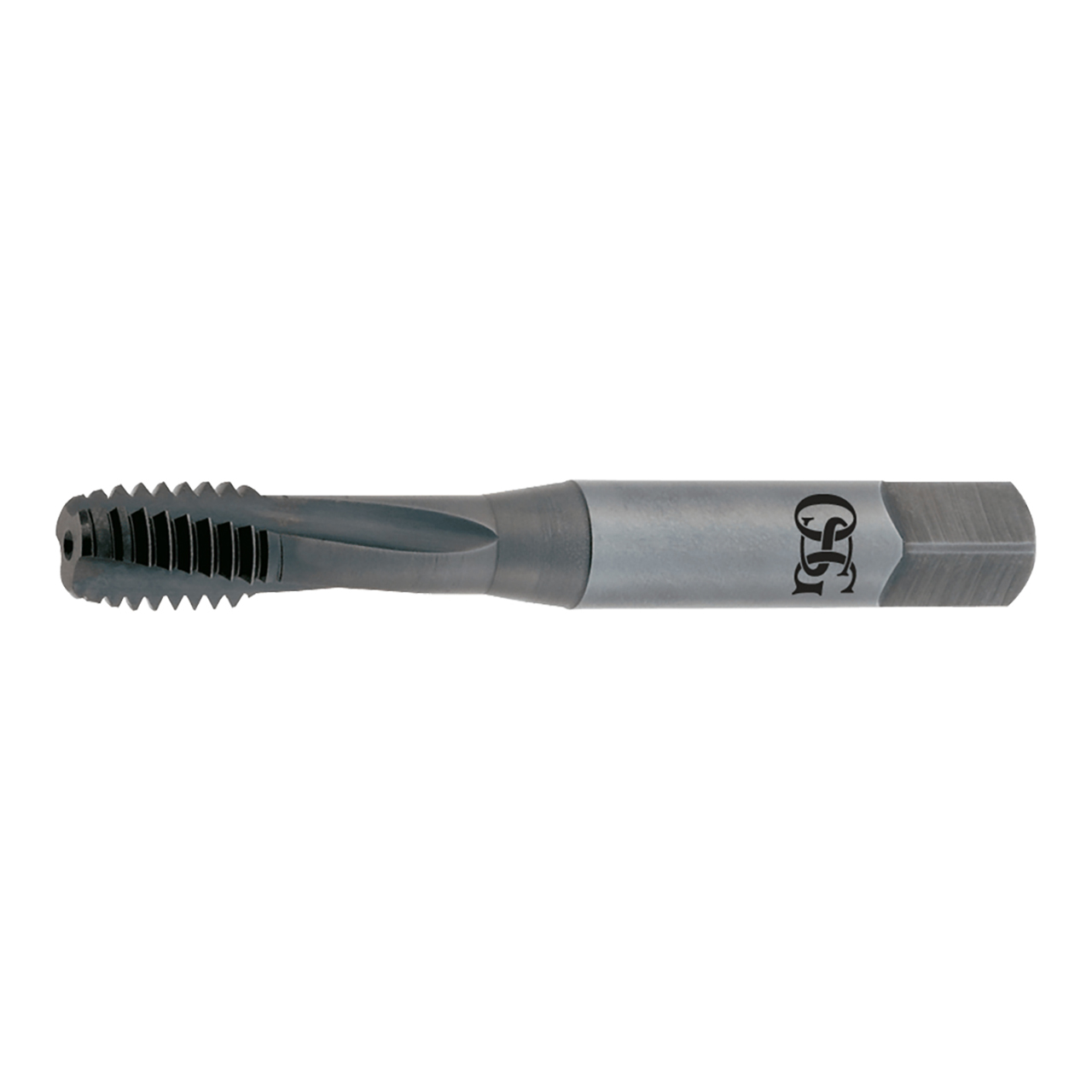

EXOTap VC-10 is the premium solution for Tapping in difficult to machine Materials.
Features & Benefits:
- Premium Powdered Metal VC-10 Substrate: Increased Hardness for longer life
- Spiral Flute: For Blind Hole Applications
- Steam Oxide Surface Treatment: S/O Increases Mechanical Lubricity
- OSG V-Coating: Increased Hardness, Lubricity & Wear Resistance
Product Specifications
| Manufacturer Part Number | 1705508 |
| Chamfer Length (Decimal Inch) | 0.049" |
| Major Diameter (mm) | 3.00mm |
| Neck Length (mm) | 16.00mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 49.20mm |
| Pitch (mm) | 0.50mm |
| Shank Diameter (mm) | 3.58mm |
| Square Length (mm) | 4.76mm |
| Square Width (mm) | 2.79mm |
| Maximum Tap Drill Size (mm) | 2.60mm |
| Minimum Tap Drill Size (mm) | 2.46mm |
| Thread Length (mm) | 4.10mm |
| Thread Size | M3 |
| Coating | V |
| Material | VC-10 |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (mm):
49.20mm
Shank Diameter (mm):
3.58mm
Helix Angle:
15 Degree
Number of Flutes:
3
Material:
VC-10
Finish/Coating:
V
Cutting Direction:
Right Hand
Neck Length (mm):
16.00mm
Square Length (mm):
4.76mm
Pitch (mm):
0.50mm
Thread Length (mm):
4.10mm
Chamfer Length (Decimal Inch):
0.0490"
