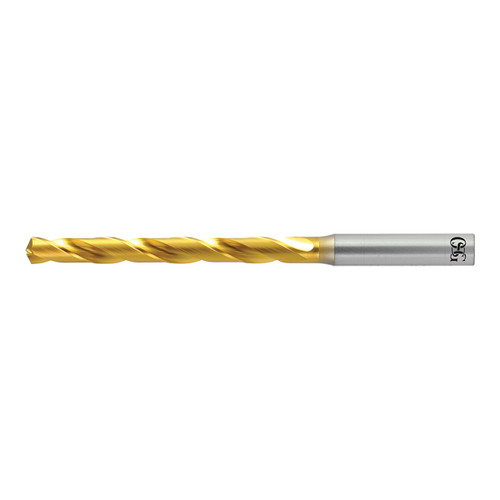

V-HO-GDR OIL HOLE Drills Designed for a Wide Range of Materials, Coolant Thru
Product Specifications
| Manufacturer Part Number | 17453108 |
| Coolant Through | Yes |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0011" |
| Cutting Diameter Tolerance (mm) | +0 / -0.027mm |
| Cutting Diameter Tolerance Specification | h8 |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 29/64" |
| Diameter (Decimal Inch) | 0.453" |
| Diameter (mm) | 11.51mm |
| Flute Length (mm) | 106.00mm |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| List Name | V-HO-GDR |
| Number of Flutes | 2 |
| Overall Length (mm) | 159.00mm |
| Point Angle (Degree) | 130 Degree |
| Shank Diameter (Decimal Inch) | 0.453" |
| Material | HSS-CO |
| Coating | V |
| Product Type | Jobber Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Coolant Through:
Yes
Cutting Direction:
Right Hand
Diameter (Inch):
29/64"
Diameter (Decimal Inch):
0.4530"
Diameter (mm):
11.51mm
Flute Length (mm):
106.00mm
Helix Angle:
30 Degree
Number of Flutes:
2
Overall Length (mm):
159.00mm
Point Angle:
130 Degree
Shank Diameter (Decimal Inch):
0.4530"
Material:
HSS-CO
Finish/Coating:
V
interval quantity:
1
