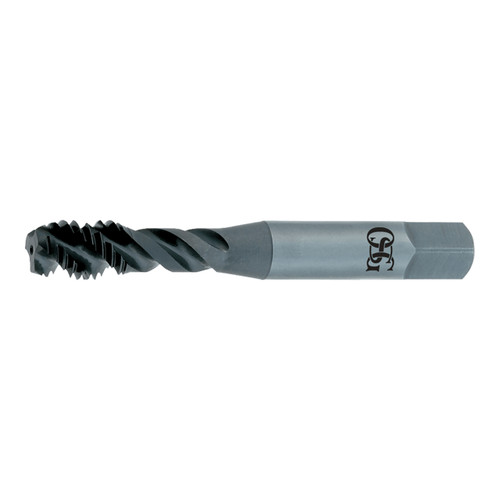

EXOTap VA-3 is the premium solution for Tapping stainless steels. The spiral flute series offers stable chip evacuation and reduces Cutting forces. The spiral point series enables greater chip control and help produce tighly compacted chips for easy ejection from the Hole.
Features & Benefits:
- HSSE Material: Increased Wear Resistance
- Spiral Flute: For Blind Hole Applications
- Steam Oxide Surface Treatment: S/O Increases Mechanical Lubricity
- OSG V-Coating: Increased Hardness, Lubricity & Wear Resistance
Product Specifications
| Manufacturer Part Number | 1746401 |
| Chamfer Length (Decimal Inch) | 0.059" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | VA-3 SFT |
| Major Diameter (mm) | 3.50mm |
| Neck Length (mm) | 16.00mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 49.21mm |
| Pitch (mm) | 0.60mm |
| Shank Diameter (mm) | 3.58mm |
| Square Length (mm) | 4.76mm |
| Square Width (mm) | 2.79mm |
| Material | HSSE |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (mm) | 3.01mm |
| Tap Drill Size Minimum (mm) | 2.85mm |
| Thread Length (mm) | 4.10mm |
| Thread Limit | D4 |
| Thread Size | M3.5 |
| Thread Type | M |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Chamfer Length (Decimal Inch):
0.0590"
Cutting Direction:
Right Hand
Helix Angle:
45 Degree
Neck Length (mm):
16.00mm
Number of Flutes:
3
Overall Length (mm):
49.21mm
Pitch (mm):
0.60mm
Shank Diameter (mm):
3.58mm
Square Length (mm):
4.76mm
Material:
HSSE
Finish/Coating:
Steam Oxide
Thread Length (mm):
4.10mm
Thread Limit:
D4
Thread Size:
M3.5
Thread Type:
M
