OSG 257-2506 | 6.35mm Diameter x 6.35mm Shank x 152.40mm OAL 4 Flute Carbide Chucking Reamer

$84.24
Brand:
OSG
Cutting Direction:
Right Hand
Diameter (Inch):
1/4"
Diameter (Decimal Inch):
0.2500"
Diameter (mm):
6.35mm
Flute Length (mm):
62.30mm
Number of Flutes:
4
Overall Length (mm):
152.40mm
Shank Diameter (mm):
6.35mm
Material:
Carbide
Finish/Coating:
Bright
Taper Length (mm):
12.60mm
interval quantity:
1
SKU:
10291526
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

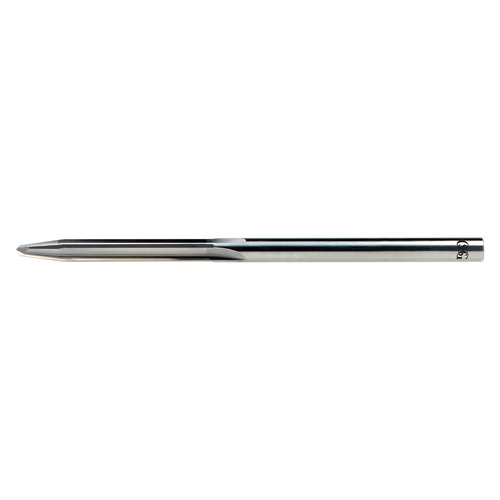

The Carbide AERO-D-REAM is a high performance Tapered drill/reamer for composites.

Features & Benefits:

  • Straight Flute: Limits peel-up at Hole entrance
  • Elongated double-angle geometry: Reduces thrust and limits exit delamination
  • Ultra-fine micrograin carbide: Smaller grain size yields improved Wear Resistance and better coating adhesion properties for extended tool life
Product Specifications
Manufacturer Part Number257-2506
Cutting Diameter Tolerance (Decimal Inch)+0.0005 / -0"
Cutting DirectionRight Hand
Diameter (Inch)1/4"
Diameter (Decimal Inch)0.250"
Diameter (mm)6.35mm
Flute Length (mm)62.30mm
List NameAERO-D-REAM
Number of Flutes4
Overall Length (mm)152.40mm
Shank Diameter (mm)6.35mm
Shank Toleranceh6
MaterialCarbide
CoatingBright
Taper Length (mm)12.60mm
Product TypeChucking Reamer
